Lightolier (Signify)

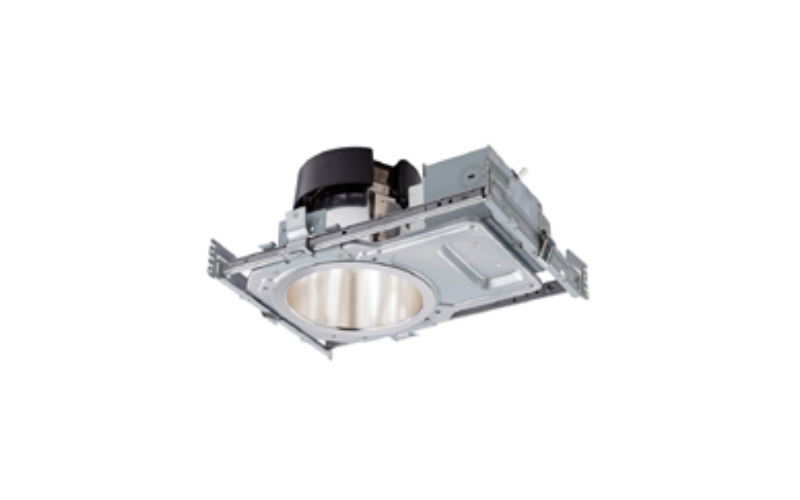

C7RDL. Calculite LED 7'' gen 3 Round Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
Calculite LED 7" generation 3 features industry leading visual comfort, excellent uniform illumination over time, and patented installation flexibility
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8 5/8"L: 8 5/8"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000K
- CRI90
- Watt(Approx)8 W11 W16 W21 W30 W44 W50 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm3500 Lm4800 Lm6000 Lm
- OpticsDirectFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron Hi-lume Premier Eco (PEQ0)eldoLED SOLO 0-10VDMX/RDM
- Controls/NetworkEthernetBluetoothIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentAntimicrobial FinishWet
- Mounting TypeCeiling RecessedDrywall
- HousingNew ConstructionChicago PlenumRemodel
- Housing Depth6 7/8 ''9 ''
