Lightolier (Signify)

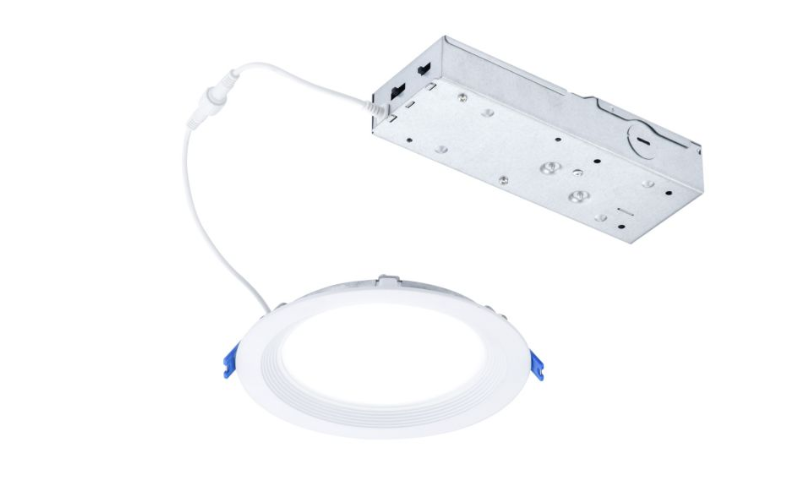

DL. Downlight dual select 3'', 4'' & 6'' Round.
Configure
Add to project
RESOURCES
DESCRIPTION
Lightolier LED Downlight dual select provides an easy to install solution. The CCT and Lumen selection features make it easy to adjust at the time of installation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.7"5"7.2"L: 3.8"5"7.2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KField Select CCT
- CRI90
- Watt(Approx)8 W9-11 W11 W15 W13-15 Wswitchable
- Lumens(Approx)400 Lm370-500 Lm700 Lm540-700 Lm900-1100 Lm1100 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*Energy Star*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingIC Air Tight
- Housing Depth1.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
