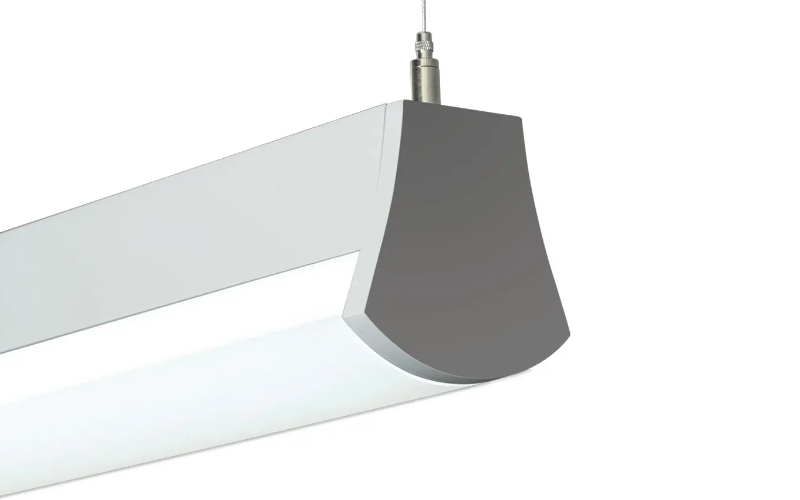

67L-P-D. NOTE LED PENDANT DIRECT.
 Configure
 Add to project
Litecontrol. 67L-P-D. NOTE LED PENDANT DIRECT.
Litecontrol. 67L-P-D. NOTE LED PENDANT DIRECT.
Litecontrol. 67L-P-D. NOTE LED PENDANT DIRECT.
Litecontrol. 67L-P-D. NOTE LED PENDANT DIRECT.
RESOURCES
DESCRIPTION
  • Now available Contractor-Ready for faster and easier installation
  • Variable Intensity technology provides specifiable output or wattage
  • Available with three distinct lens types to fit a wide range of architectural styles
  • Removable lens
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3"3.5"
    L: 2 Ft3 Ft4 Ft6 Ft8 FtRun length (Ft)
    H: 3.88"3.94"3.69"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3000K Dim to Warm3500K4000K5000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    4.2 W/Ft4.7 W/Ft4.9 W/Ft5.4 W/Ft5.8 W/Ft6.0 W/Ft6.5 W/Ft6.7 W/Ft8.0 W/Ft8.5 W/Ft8.7 W/Ft8.9 W/Ft9.2 W/Ft9.4 W/Ft9.6 W/Ft9.8 W/Ft10.1 W/Ft10.6 W/Ft11.2 W/Ft11.6 W/Ft11.8 W/Ft12.5 W/Ft12.7 W/Ft13.6 W/Ft14.1 W/Ft14.3 W/Ft14.7 W/Ft15.0 W/Ft15.3 W/Ft15.7 W/Ftcustom
  • Lumens(Approx)
    550 Lm/Ft600 Lm/Ft650 Lm/Ft700 Lm/Ft750 Lm/Ft800 Lm/Ft850 Lm/Ft900 Lm/Ft950 Lm/Ft1000 Lm/Ft1050 Lm/Ft1100 Lm/Ft1150 Lm/Ft1200 Lm/Ft1250 Lm/Ft1300 Lm/Ft1350 Lm/Ft1400 Lm/Ft1450 Lm/Ft1500 Lm/Ft1550 Lm/Ft1600 Lm/Ft1650 Lm/Ft1700 Lm/Ft1750 Lm/Ft1800 Lm/Ft1850 Lm/Ft1900 Lm/Ft1950 Lm/Ft2000 Lm/Ftcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Non-Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    BluetoothNX WirelessIntegral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    61000 h
  • Certificates
    CSADLC*BAA
  • Environment
    DampHealthcare General
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
