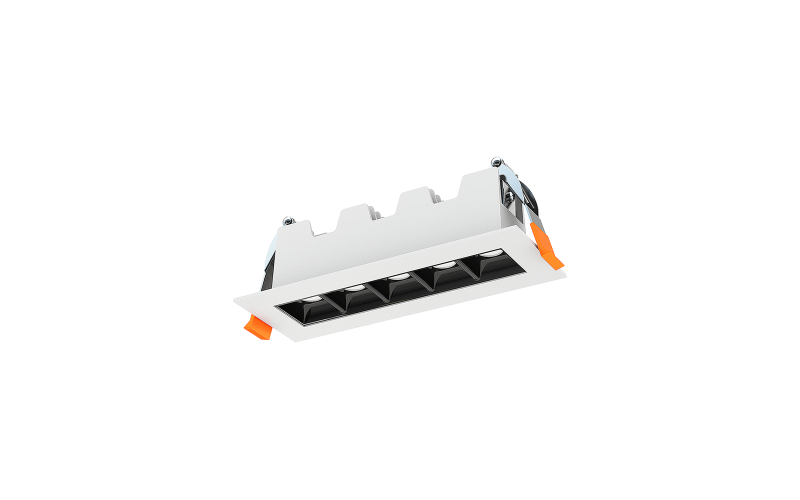

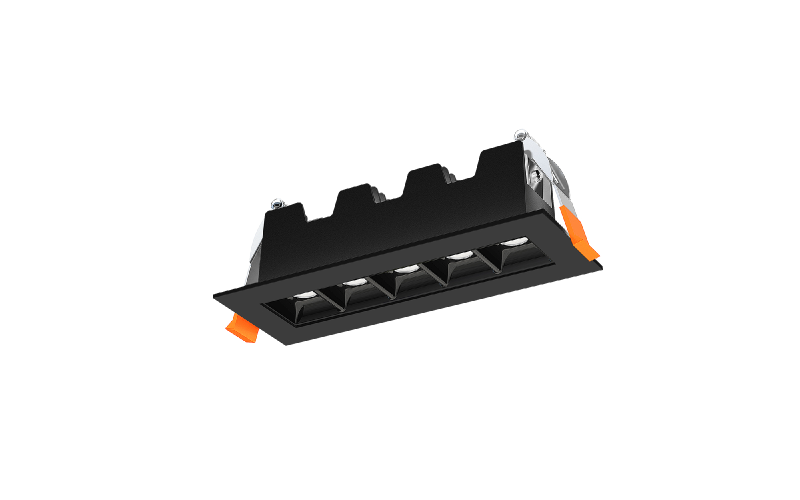

JXL-TXH05-T11W-5CCT. 5 LED Linear Recessed 11W 5CCT.
Configure
Add to project
RESOURCES
DESCRIPTION
5 LED Linear Recessed With Integral Driver In Connection Box For unique and original lighting installations
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 5/16"L: 6 3/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KField Select CCT
- CRI80
- Watt(Approx)11 W
- Lumens(Approx)660 Lm
- OpticsDirectFlood
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/Leading
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance30000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingIC Air Tight
- Housing Depth2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
