Lumec (Genlyte Solutions)

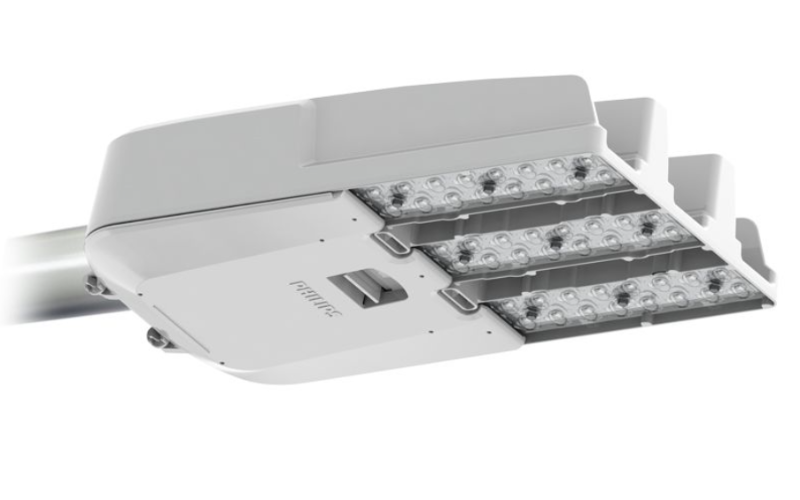

SVM. StreetView Roadway LED Cobra Head medium.
Configure
Add to project


RESOURCES
DESCRIPTION
When superior performance and low price come together to fulfill a client’s need. The Lumec StreetView LED luminaire is designed for many applications that require medium intensity lighting. It will efficiently illuminate collector roads, city streets, bridges and overpasses, and it is also a great choice for local roads and residential streets. The efficient design and optics make the StreetView perfect for small and medium road lighting needs because it will ensure maximum reliability and security at night for both drivers and citizens. And to up the charm factor StreetView is as easy to install as it is to maintain. Powered by a Philips LED platform inspired by the famous LEDgine platform and featuring innovative thermal management design, this new LED luminaire has two major assets: exceptional performance and unbeatable value.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10 1/4"L: 18 1/2"H: 4"
- Light SourceLED
- CCT/Color4000K
- CRI70
- Watt(Approx)19 W26 W27 W36 W35 W53 W71 W54 W79 W105 W162 W
- Lumens(Approx)2299 Lm2999 Lm3150 Lm4029 Lm4341 Lm6515 Lm6734 Lm8237 Lm9542 Lm12186 Lm17248 Lm
- OpticsDirectType IIType IIIType V
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULRoHS
- EnvironmentIP66
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSVM
—
