Lumec (Genlyte Solutions)

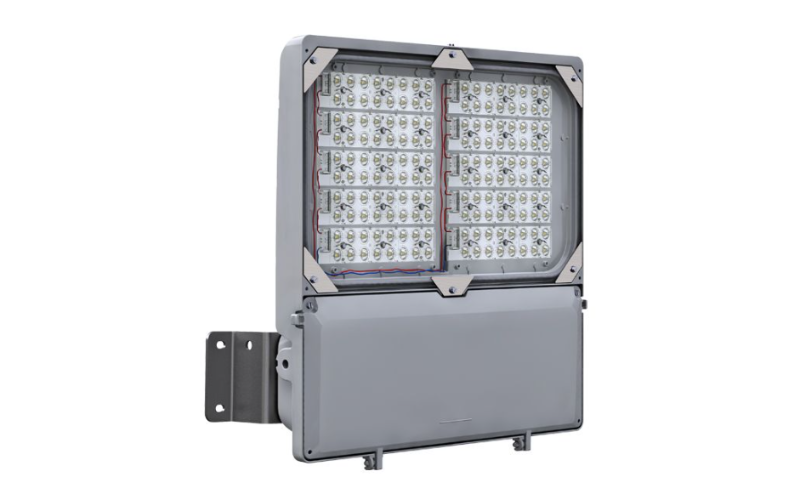

TULL. TunnelView Tunnel/Underpass luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
Lumec TunnelView tunnel/underpass luminaires provide seamless replacement of existing HID luminaires. This fixture is available in three sizes, offers multiple lumen packages, and a complete array of optical distributions, making it an outstanding solution for all types of tunnel and underpass applications. Includes Service Tag, Signify's innovative way to provide assistance throughout the life of the product.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23 1/2"L: 22 5/8"H: 3 3/8"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI70 80
- Watt(Approx)101 W138 W155 W212 W210 W170 W322 W281 W260 W380 W352 W459 W
- Lumens(Approx)14505 Lm19360 Lm21059 Lm26660 Lm27915 Lm24105 Lm36679 Lm35309 Lm34758 Lm46296 Lm43823 Lm53876 Lm
- OpticsDirectNarrowAsymmetric/WashType IIType IIIType IVType V
- AdjustableAdjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentIP66Vandalproof
- Mounting TypeKnuckleSlip FitterBrackets
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTULL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
