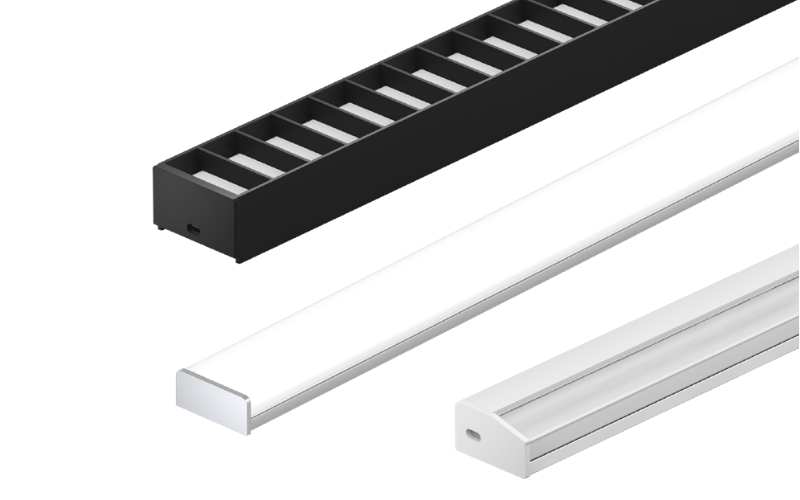

BAR-BABA. Bara Surface - Dynamic Color Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
Bara Surface is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with RGB LEDs for vivid, saturated color, RGBW LEDs delivering rich whites alongside color, smart Pixel LEDs enabling dynamic, addressable color effects, Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for undercabinet, surface mount, and direct view applications, Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less. Bara Surface – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.93"L: Run length (inch)H: 0.4"
- Light SourceLED
- CCT/Color2400K or less2700K Dim to Warm3000K Dim to WarmTunable WhiteRGBRGBW
- CRI96 97 95
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft4 W/Ft4.5 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft8.3 W/Ft
- Lumens(Approx)110 Lm/Ft122 Lm/Ft138 Lm/Ft137 Lm/Ft201 Lm/Ft166 Lm/Ft257 Lm/Ft272 Lm/Ft228 Lm/Ft366 Lm/Ft337 Lm/Ft457 Lm/Ft
- OpticsDirectFloodGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*RoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
