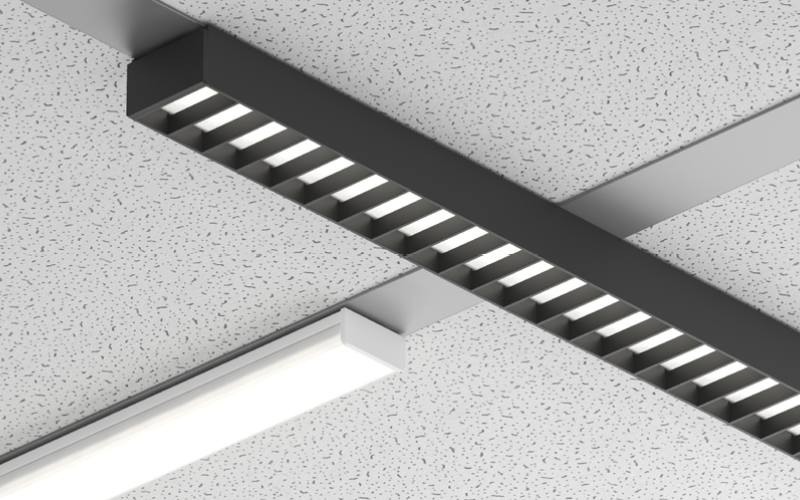

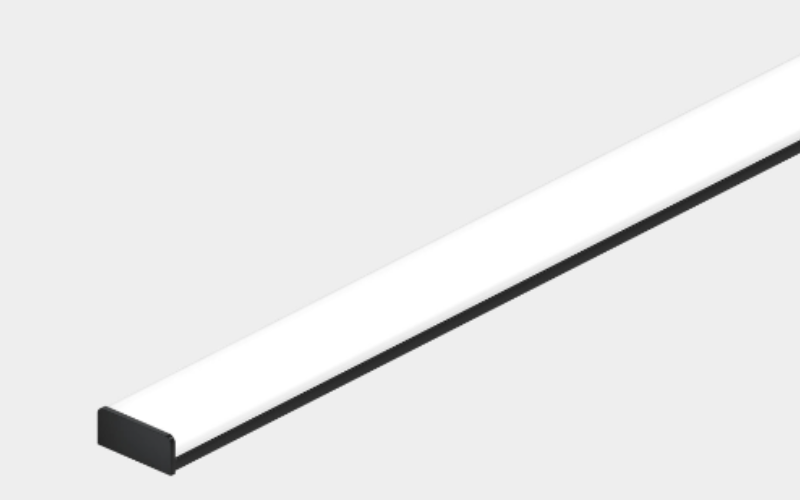

BAR. Bara Grid - Static White Linear Illumination System.
Configure
Add to project



RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 144”.Fixtures can be linked up to 40’ depending on output
- Suitable for undercabinet, surface mount, and direct view applications
- Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7W/ft or less
- Class 2 listed for damp locations
- Dot free even illumination with frosted lens
- High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
- High Efficacy options offer best in class output and efficacy with over 760 lm/ft and up to 90 lm/W
- Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
- 7 Year warranty
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.93"L: Run length (inch)H: 0.4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI96 92 93 97
- Watt(Approx)2.8 W/Ft4.8 W/Ft6 W/Ft7.5 W/Ft9.6 W/Ft
- Lumens(Approx)175 Lm/Ft284 Lm/Ft344 Lm/Ft679 Lm/Ft762 Lm/Ft
- OpticsDirectFloodWide FloodGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USAT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
