Luminii
KE. Knife Edge – Static White Integrated asymmetric lighting.
Configure
Add to project
RESOURCES
DESCRIPTION

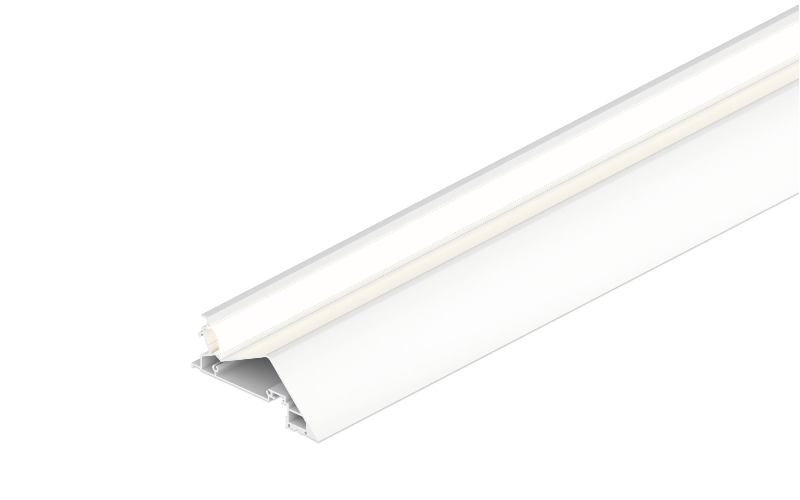

The Luminii KNIFE EDGE system produces an elegant, seamless sharp-edged architectural feature with uniform lighting on adjacent surfaces. The sharp edge extrusion attaches to extruded aluminum wall brackets and accepts 5/8” thick drywall on its underside. Create a soft diffused illumination, color tuning or an asymmetrical forward distribution by selecting the desired beam control offering.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.102"L: Run length (inch)H: 2.515"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI90 95
- Watt(Approx)1.9 W/Ft2.8 W/Ft4.8 W/Ft3.5 W/Ft6 W/Ft6.5 W/Ft7.5 W/Ft
- Lumens(Approx)150 Lm/Ft146 Lm/Ft202 Lm/Ft243 Lm/Ft296 Lm/Ft270 Lm/Ft433 Lm/Ft548 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)EldoLED 0-10V/DALIDMX
- Controls/NetworkEnlighted
- Power/VoltageRemote120V220-240V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USAT24*RoHS
- Environment
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKE
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
