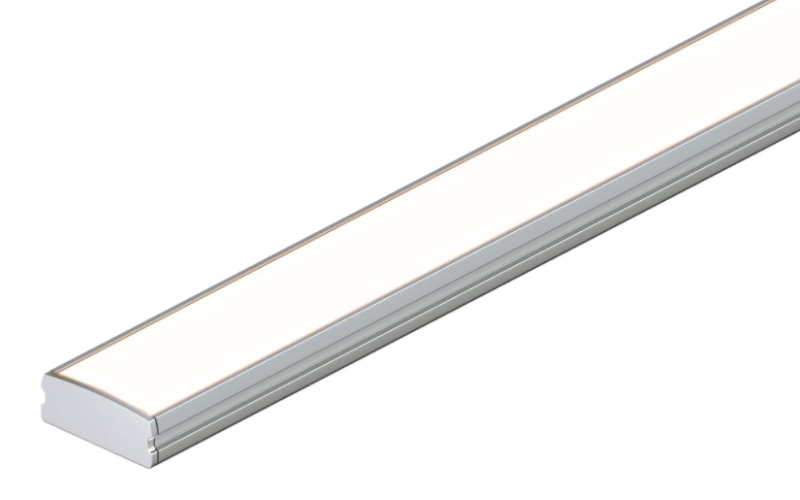

KLW. Kendo L Surface Wet - Static White Linear Illumination System.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 16 feet depending on output
- Suitable for undercabinet, millwork recessed and surface mount applications
- Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
- Vibrant colors with R9 values up to98
- Dot free even illumination achievable in certain outputs
- Single micro binned LEDs +/- 30 CCT
- Dims with minimal color shift
- Class 2 listed for wet locations
- Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.83"L: Run length (inch)H: 0.31”0.62”0.77”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI97 91 94
- Watt(Approx)1.9 W/Ft2.8 W/Ft3.5 W/Ft6.5 W/Ft7.3 W/Ft7.5 W/Ft
- Lumens(Approx)177 Lm/Ft246 Lm/Ft447 Lm/Ft328 Lm/Ft526 Lm/Ft666 Lm/Ft
- OpticsDirectGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)EldoLED 0-10V/DALIDMX
- Controls/NetworkEnlighted
- Power/VoltageRemote120V220-240V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSDeclare
- EnvironmentIP68
- Mounting TypeMillwork RecessedSurfaceDrywall
- HousingIC
- Housing Depth0.30 ''
