Luminii

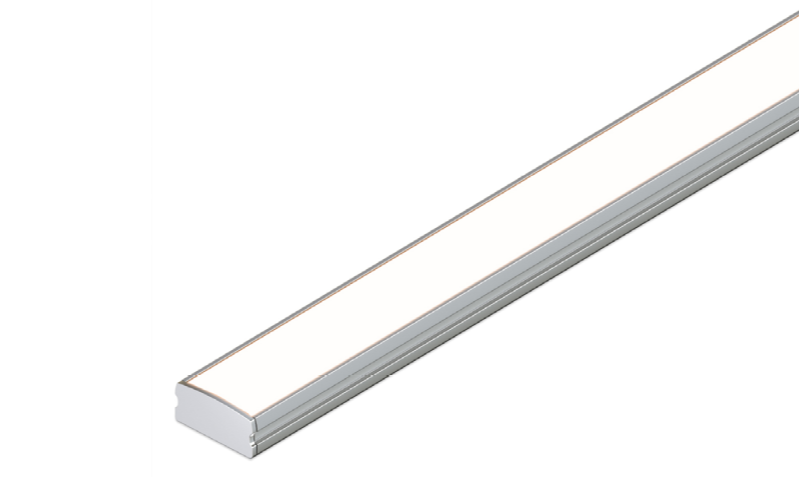

KLW. Kendo L Surface Wet - Dynamic Color Linear Illumination System.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 16 feet depending on output
- Suitable for undercabinet, millwork recessed and surface mount applications
- Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
- Vibrant colors with R9 values up to98
- Dot free even illumination achievable in certain outputs
- Single micro binned LEDs +/- 30 CCT
- Dims with minimal color shift
- Class 2 listed for wet locations
- Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.83"L: Run length (inch)H: 0.3"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable WhiteRGBRGBW
- CRI98
- Watt(Approx)4 W/Ft4.5 W/Ft5.7 W/Ft7.3 W/Ft7.6 W/Ft10.1 W/Ft
- Lumens(Approx)113 Lm/Ft142 Lm/Ft141 Lm/Ft171 Lm/Ft235 Lm/Ft440 Lm/Ft355 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USARoHSDeclare
- EnvironmentIP68
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKLW-DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
