Luminii

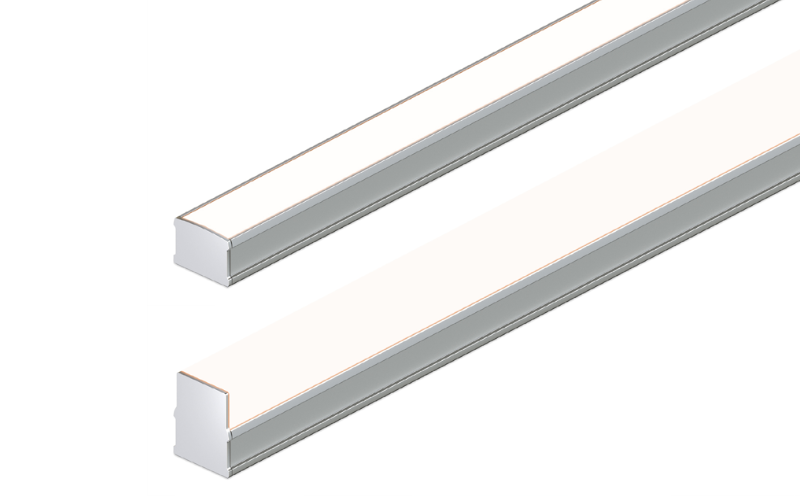

KM-BABA. Kendo M Surface - Dynamic Color Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
Kendo M Surface is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with RGB LEDs for vivid, saturated color, RGBW LEDs delivering rich whites alongside color, smart Pixel LEDs enabling dynamic, addressable color effects, Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for undercabinet, millwork, surface mount, direct view, cove, outdoor, wet, architectual reveals, and accent lighting applications, Dot free even illumination with frosted lens. Kendo M Surface – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.69"L: Run length (inch)H: 0.49"
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to WarmTunable WhiteRGBRGBW
- CRI96 95 97
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft4 W/Ft4.5 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft8.3 W/Ft
- Lumens(Approx)154 Lm/Ft173 Lm/Ft172 Lm/Ft138 Lm/Ft209 Lm/Ft287 Lm/Ft253 Lm/Ft323 Lm/Ft460 Lm/Ft342 Lm/Ft424 Lm/Ft575 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKM-BABA-DC
—
