KMG. Kendo M Graze - Dynamic Color Linear Illumination System.
Configure
Add to project
RESOURCES
DESCRIPTION

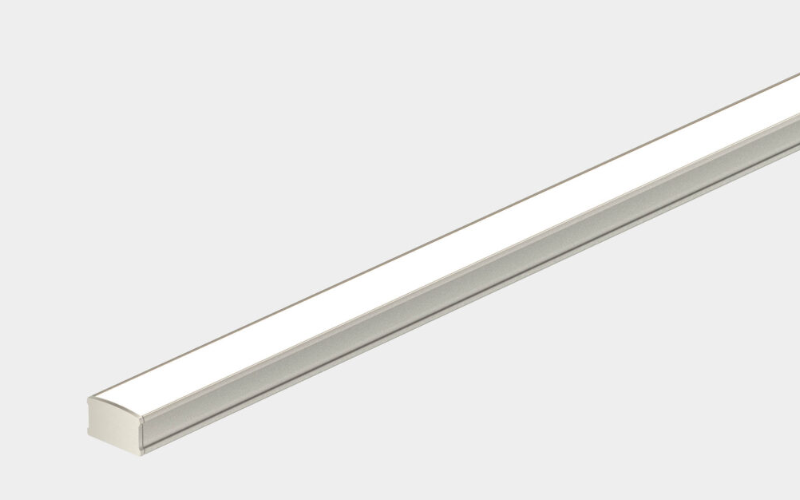

Extruded aluminum linear grazing system, Kendo M Graze features a 1° lightly frosted lens. Available in sections up to 16 inches long, Kendo M Graze is suitable for highlighting textured surfaces, stone walls or for edge lighting. Class 2 listed for damp location installations. Approved for closet/storage space installation per NFPA 70, article 410.16. 5 year warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.69"L: Run length (inch)H: 0.59"
- Light SourceLED
- CCT/Color2700K Dim to Warm3500K Dim to WarmRGBRGBW
- CRI96 97 98 93 95
- Watt(Approx)4.6 W/Ft4 W/Ft4.5 W/Ft5.4 W/Ft5.6 W/Ft5.7 W/Ft7.6 W/Ft8.3 W/Ft
- Lumens(Approx)119 Lm/Ft95 Lm/Ft197 Lm/Ft198 Lm/Ft175 Lm/Ft144 Lm/Ft238 Lm/Ft286 Lm/Ft
- OpticsDirectNarrow
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
