Krest Duo Linear Mud-In Illumination System - Dynamic Color.
Configure
Add to project



RESOURCES
DESCRIPTION

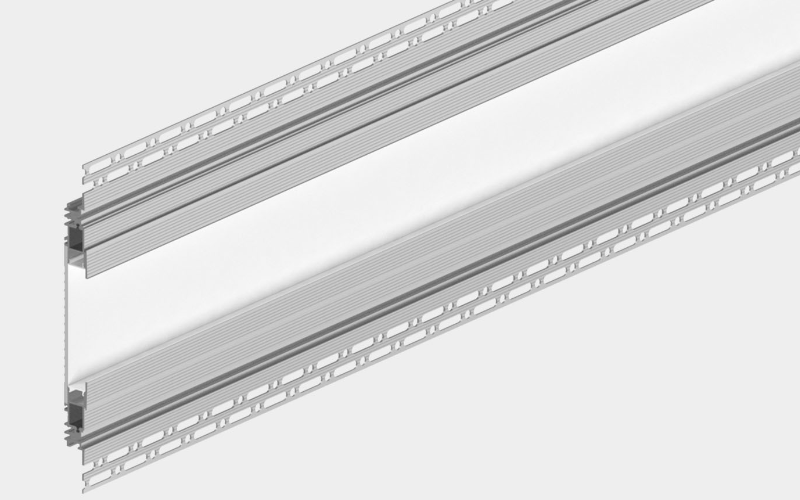

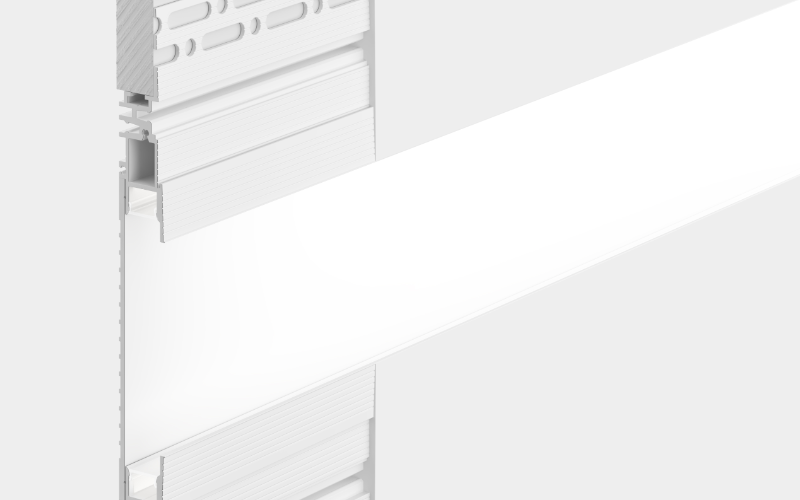

Krest Duo is a symmetric mud-in slot lighting system designed to create depth and dimension through dual opposing lines of indirect light. Ideal for wall or ceiling applications, it forms a clean architectural channel that enhances space with balanced illumination on both sides. As part of the Krest system, Duo is specified as a complete solution—eliminating complexity in configuration, improving installation efficiency, and delivering repeatable, high-quality results. It utilizes Luminii’s LineLED technology, offering a range of outputs and color temperatures with smooth, uniform, dot-free light.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.72"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to WarmTunable WhiteRGBRGBW
- CRI96 95 97
- Watt(Approx)4.6 W/Ft9.5 W/Ft8.8 W/Ft8 W/Ft9 W/Ft13.8 W/Ft10.9 W/Ft11.4 W/Ft15.2 W/Ft16.6 W/Ft
- Lumens(Approx)154 Lm/Ft174 Lm/Ft172 Lm/Ft139 Lm/Ft210 Lm/Ft288 Lm/Ft253 Lm/Ft324 Lm/Ft461 Lm/Ft343 Lm/Ft426 Lm/Ft576 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V220-240V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesMade in USAT24*RoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKREST-DUO-DC
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
