Luminii
Krest Edge Linear Mud-In Illumination System - Dynamic Color.
Configure
Add to project



RESOURCES
DESCRIPTION

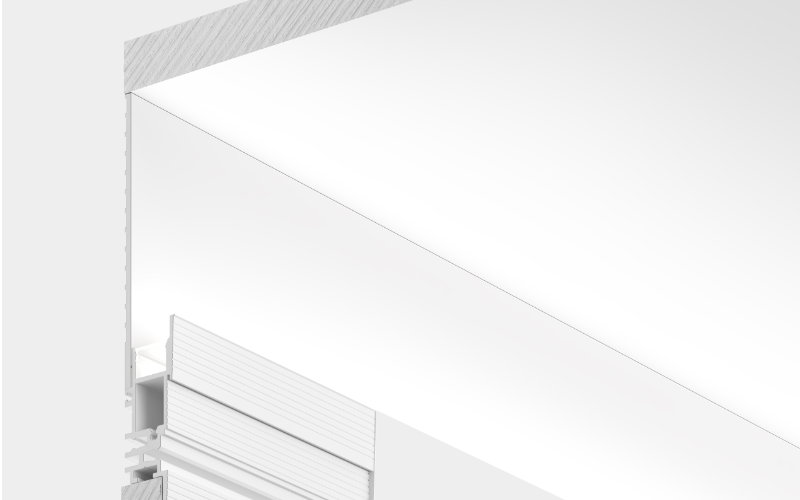

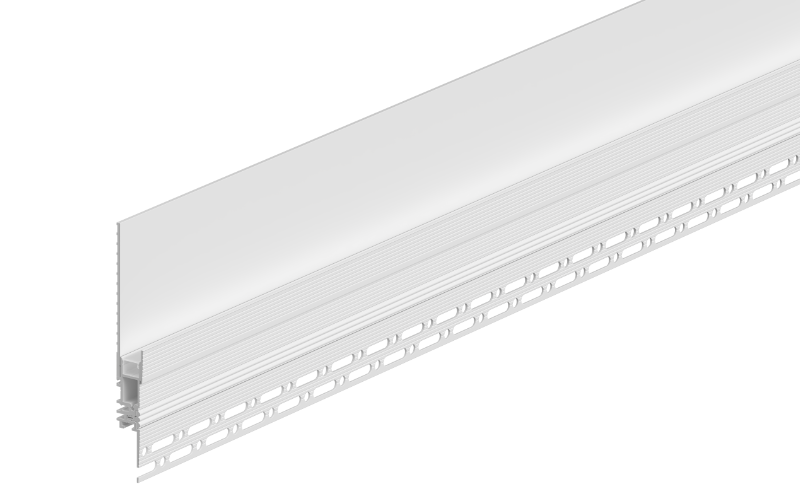

Krest Edge is a mud-in perimeter lighting solution designed to create clean, continuous lines of indirect light at architectural transitions such as wall-to-ceiling conditions and toe-kick applications. Built for seamless integration into drywall, it delivers a sharp edge reveal with smooth, dot-free illumination and consistent performance. As part of the Krest system, Edge is configured as a complete solution—simplifying specification, streamlining installation, and ensuring predictable results across complex layouts. It pairs with Luminii’s high-performance LineLED platform, offering a range of outputs and color temperatures to suit a wide variety of applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.72"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to WarmTunable WhiteRGBRGBW
- CRI96 95 97
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft4 W/Ft4.5 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft8.3 W/Ft
- Lumens(Approx)85 Lm/Ft95 Lm/Ft76 Lm/Ft115 Lm/Ft178 Lm/Ft188 Lm/Ft158 Lm/Ft139 Lm/Ft253 Lm/Ft234 Lm/Ft316 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V220-240V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesMade in USAT24*RoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
