KREST. Krest Edge System - Dynamic Color Linear Mud-In Illumination System.
Configure
Add to project



RESOURCES
DESCRIPTION

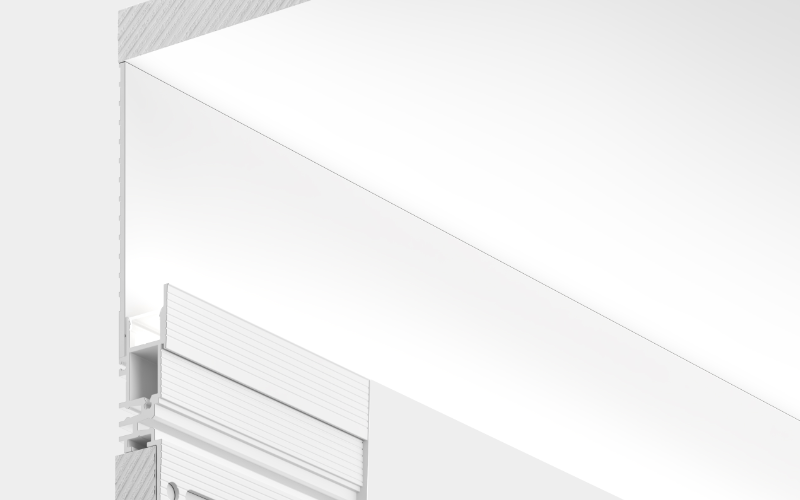

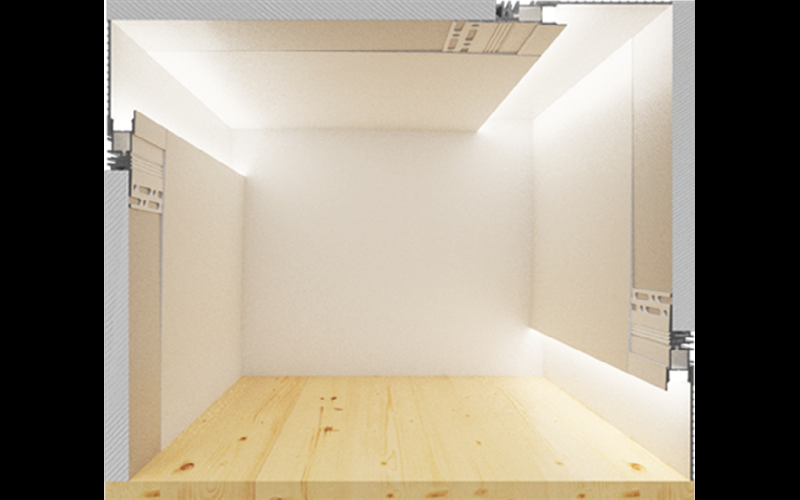

Krest Edge is a mud-in perimeter lighting solution designed to create clean, continuous lines of indirect light at architectural transitions such as wall-to-ceiling conditions and toe-kick applications. Built for seamless integration into drywall, it delivers a sharp edge reveal with smooth, dot-free illumination and consistent performance. As part of the Krest system, Edge is configured as a complete solution—simplifying specification, streamlining installation, and ensuring predictable results across complex layouts. It pairs with Luminii’s high-performance LineLED platform, offering a range of outputs and color temperatures to suit a wide variety of applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.25"L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K Dim to Warm3000K Dim to WarmTunable WhiteRGBW
- CRI90
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft4.5 W/Ft4 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft8.3 W/Ft
- Lumens(Approx)85 Lm/Ft95 Lm/Ft76 Lm/Ft115 Lm/Ft178 Lm/Ft188 Lm/Ft139 Lm/Ft158 Lm/Ft253 Lm/Ft234 Lm/Ft316 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCEMade in USAT24*RoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall SurfaceDrywall
- HousingFixture
- Housing Depth0.72 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
