Luminii
KREST. Krest Edge System - Static White Linear Mud-In Illumination System.
 Configure
 Add to project
DESCRIPTION

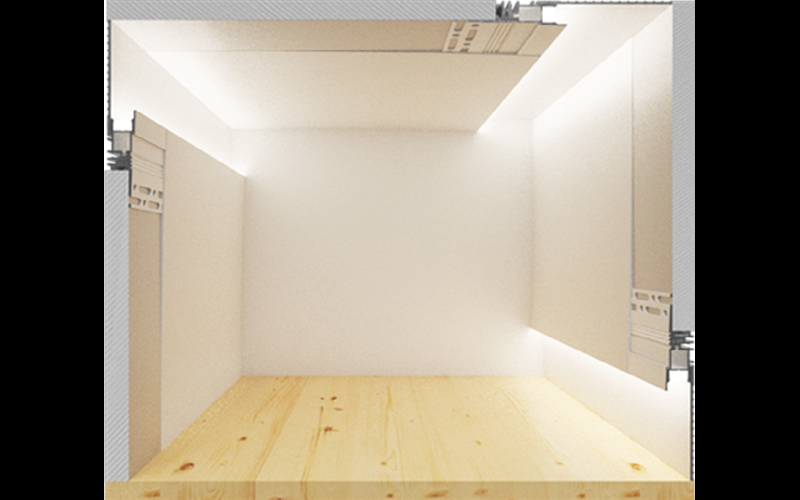

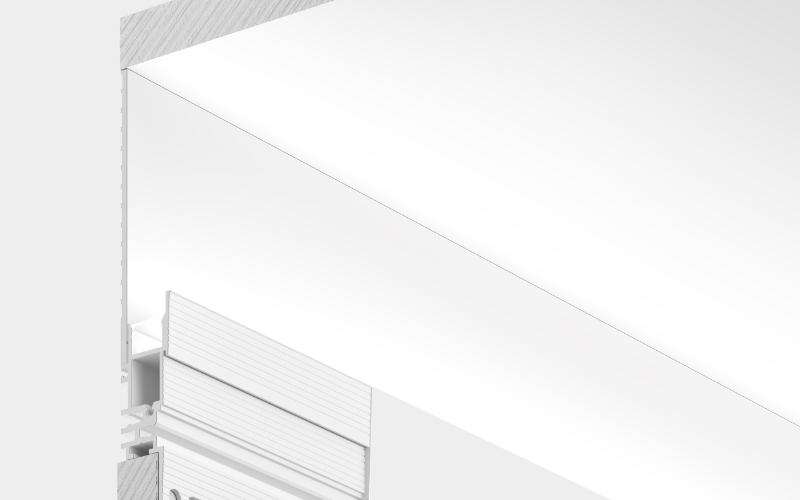

Krest Edge is a mud-in perimeter lighting solution designed to create clean, continuous lines of indirect light at architectural transitions such as wall-to-ceiling conditions and toe-kick applications. Built for seamless integration into drywall, it delivers a sharp edge reveal with smooth, dot-free illumination and consistent performance. As part of the Krest system, Edge is configured as a complete solution—simplifying specification, streamlining installation, and ensuring predictable results across complex layouts. It pairs with Luminii’s high-performance LineLED platform, offering a range of outputs and color temperatures to suit a wide variety of applications.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 6.25"
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft7.1 W/Ft
  • Lumens(Approx)
    58 Lm/Ft64 Lm/Ft147 Lm/Ft196 Lm/Ft138 Lm/Ft198 Lm/Ft259 Lm/Ft264 Lm/Ft314 Lm/Ft418 Lm/Ft375 Lm/Ft514 Lm/Ft
  • Optics
    IndirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 3-wire (L3D)DMX
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CEMade in USAT24*RoHSDeclareBAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall SurfaceDrywall
  • Housing
    Fixture
  • Housing Depth
    0.72 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
