Luminii

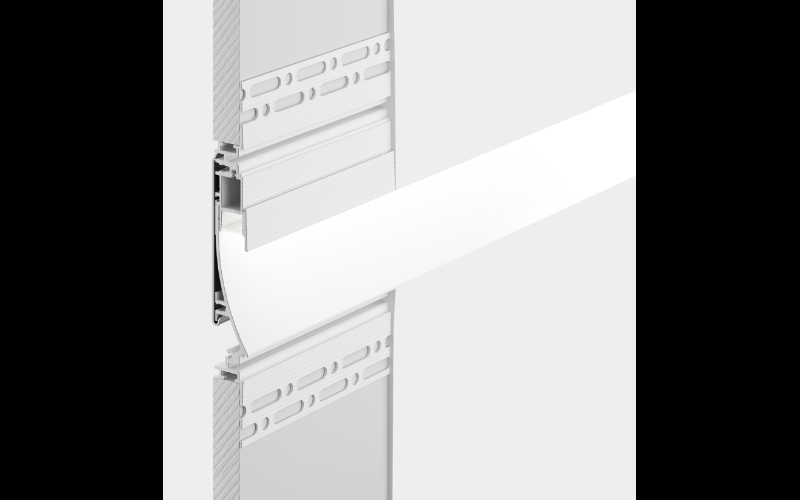

KREST. Krest Reveal System - Static White Linear Mud-In Illumination System.
 Configure
 Add to project
DESCRIPTION
Krest Reveal is a mud-in accent lighting solution designed to add subtle architectural detail through a recessed reveal with controlled, indirect illumination. Its contoured reflector profile gently distributes light across adjacent surfaces, making it ideal for wall accents and low-level lighting applications. As part of the Krest system, Reveal is delivered as a complete, pre-configured solution—simplifying specification, reducing installation variability, and ensuring consistent visual outcomes. It pairs with Luminii’s LineLED platform to provide flexible output options and high-quality, dot-free light performance.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 7.12"
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft7.1 W/Ft
  • Lumens(Approx)
    58 Lm/Ft64 Lm/Ft147 Lm/Ft196 Lm/Ft138 Lm/Ft198 Lm/Ft259 Lm/Ft264 Lm/Ft314 Lm/Ft418 Lm/Ft375 Lm/Ft514 Lm/Ft
  • Optics
    IndirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 3-wire (L3D)DMX
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CEMade in USAT24*RoHSDeclareBAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall SurfaceDrywall
  • Housing
    Fixture
  • Housing Depth
    1.25 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
