Krest Wash Linear Mud-In Illumination System - Static White.
Configure
Add to project



RESOURCES
DESCRIPTION

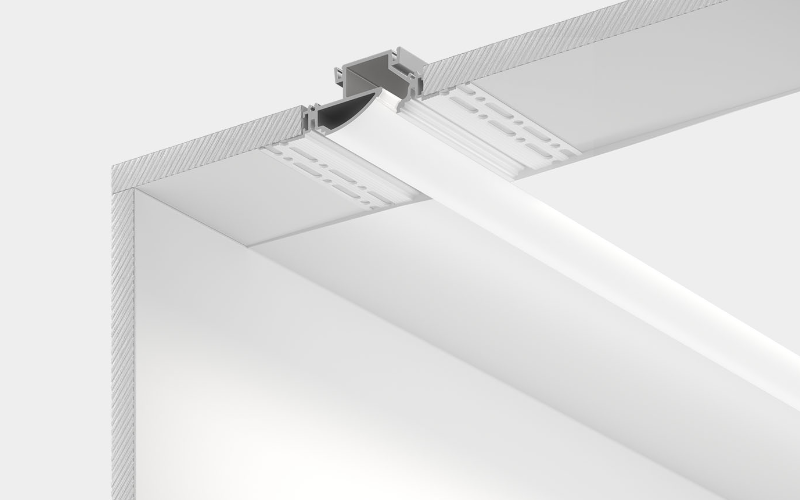

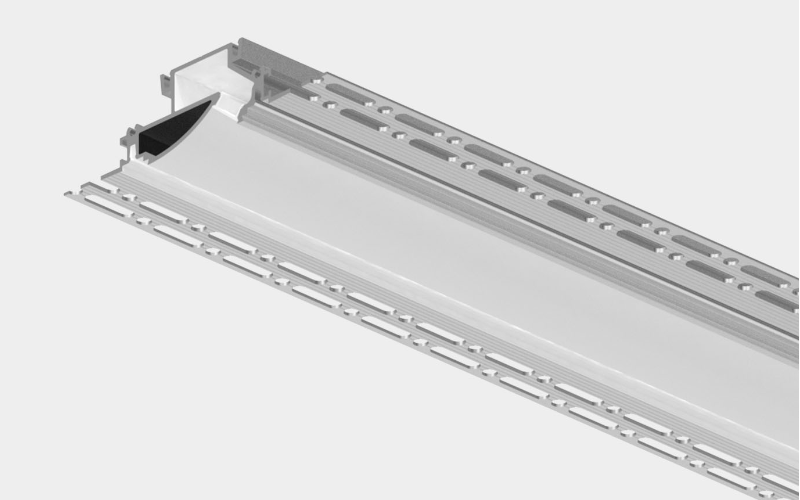

Krest Wash is a recessed mud-in wall wash system designed to deliver uniform vertical illumination with exceptional consistency and control. Its integrated optical geometry eliminates common issues such as hot spots, glare, and shadow lines near the ceiling, creating a smooth, even wash across the entire wall surface. As part of the Krest system, Wash is specified as a complete solution—streamlining design, simplifying installation, and ensuring predictable performance across applications. It is powered by Luminii’s LineLED platform, offering a range of outputs and color temperatures with reliable, high-quality light.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.72"L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95 96 98 97 94 93
- Watt(Approx)1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft9.9 W/Ft7.1 W/Ft8.9 W/Ft
- Lumens(Approx)58 Lm/Ft64 Lm/Ft147 Lm/Ft196 Lm/Ft138 Lm/Ft198 Lm/Ft259 Lm/Ft264 Lm/Ft314 Lm/Ft418 Lm/Ft498 Lm/Ft375 Lm/Ft514 Lm/Ft619 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V220-240V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesMade in USAT24*RoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
