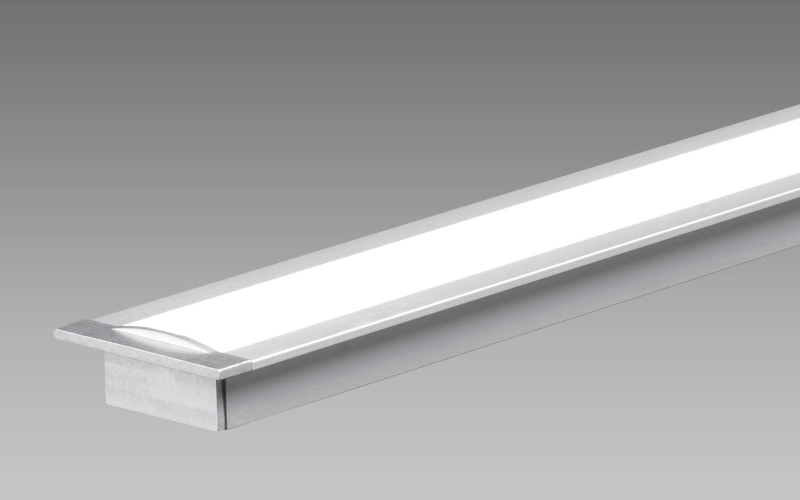

KRL. Kendo L Recessed Static White Linear Illumination System.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 16 feet depending on output
- Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
- Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
- Dot free even illumination achievable in SOHD & VHO with frosted lens
- Dims with minimal color shift Class 2 listed for damp locations
- Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
- Vibrant colors with R9 values up to 98
- Single micro binned LEDs +/- 30 CCT
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.21"L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI96 98 93 97 91 94 92
- Watt(Approx)1.9 W/Ft2.8 W/Ft3.5 W/Ft6.5 W/Ft7.3 W/Ft7.5 W/Ft
- Lumens(Approx)216 Lm/Ft298 Lm/Ft398 Lm/Ft543 Lm/Ft639 Lm/Ft809 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)EldoLED 0-10V/DALIDMX
- Controls/NetworkEnlighted
- Power/VoltageRemote120V220-240V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedDrywallWood
- HousingICFixture
- Housing Depth0.36 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKRL
