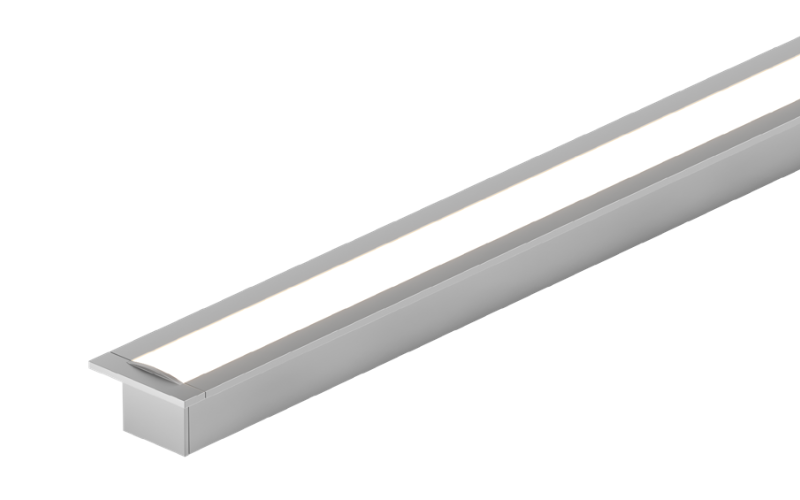

KRM-BABA. Kendo M Recessed - Static White Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
Kendo M Recessed is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with RGB LEDs for vivid, saturated color, RGBW LEDs delivering rich whites alongside color, smart Pixel LEDs enabling dynamic, addressable color effects, Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for millwork, architectural reveals, accent lighting and recessed applications, Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7W/ft or less. Kendo M Recessed – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.01"L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95 96 98 97 94
- Watt(Approx)1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft7.1 W/Ft
- Lumens(Approx)105 Lm/Ft116 Lm/Ft268 Lm/Ft251 Lm/Ft357 Lm/Ft471 Lm/Ft360 Lm/Ft479 Lm/Ft570 Lm/Ft681 Lm/Ft759 Lm/Ft934 Lm/Ft
- OpticsDirectGrazingFloodGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimELV/Reverse/Trailing0-10VDALILutron Hi-Lume 3-wire (L3D)Lutron Hi-lume Premier 3-wire (L3D03W)DMX
- Controls/Network
- Power/Voltage
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedDrywallWood
- HousingFixture
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKRM-BABA-SW
—
