Luminii

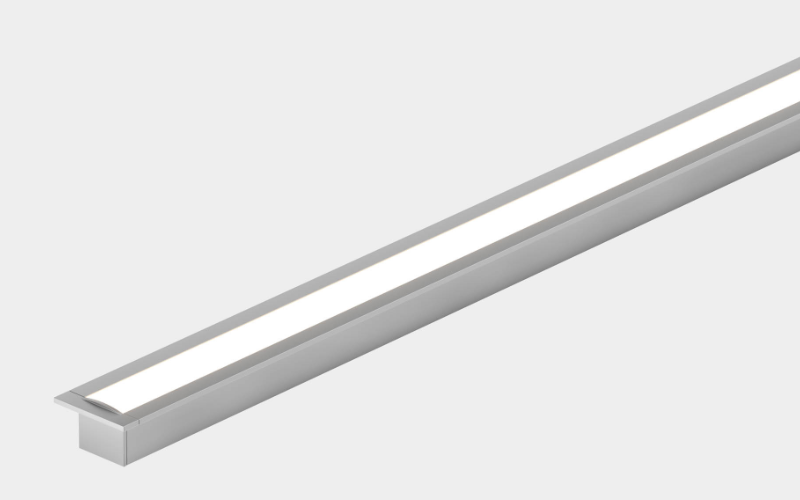

KRM. Kendo M Recessed Dynamic Color Linear Illumination system.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 35 feet depending on output
- Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
- Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
- Dot free even illumination achievable in SOHD & VHO with frosted lens
- Vibrant colors with R9 values up to 98
- Single micro binned LEDs +/- 30 CCT
- Dims with minimal color shift Class 2 listed for damp locations
- Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.01"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K Dim to Warm3500K Dim to WarmTunable WhiteRGBRGBW
- CRI96 95 97
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft4.5 W/Ft4 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft8.3 W/Ft
- Lumens(Approx)154 Lm/Ft172 Lm/Ft173 Lm/Ft138 Lm/Ft209 Lm/Ft253 Lm/Ft287 Lm/Ft323 Lm/Ft460 Lm/Ft342 Lm/Ft424 Lm/Ft575 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedDrywall
- HousingIC
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKRM-DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
