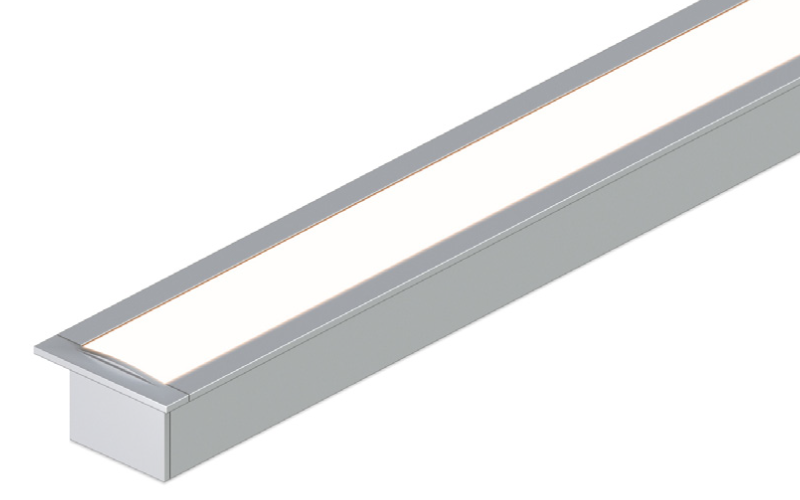

KRMW. Kendo M Recessed Wet Dynamic Color Linear Illumination System.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 35 feet depending on output
- Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
- Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
- Dot free even illumination achievable in SOHD & VHO with frosted lens
- Vibrant colors with R9 values up to 98
- Single micro binned LEDs +/- 30 CCT
- Dims with minimal color shift Class 2 listed for damp locations
- Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.69"L: Run length (inch)
- Light SourceHID
- CCT/Color3000K Dim to Warm3500K Dim to WarmTunable WhiteRGBRGBW
- CRI98
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft4 W/Ft4.5 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft8.3 W/Ft
- Lumens(Approx)113 Lm/Ft101 Lm/Ft194 Lm/Ft127 Lm/Ft211 Lm/Ft126 Lm/Ft186 Lm/Ft154 Lm/Ft237 Lm/Ft238 Lm/Ft338 Lm/Ft327 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USAT24*RoHS
- EnvironmentIP68
- Mounting TypeCeiling RecessedDrywall
- HousingIC
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
