Luminii
KRS. Kendo S Static White Recessed linear illumination system.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 35 feet depending on output

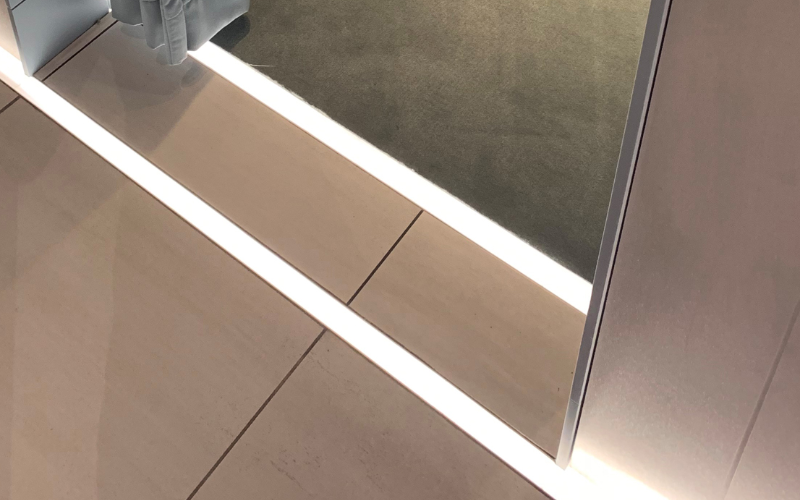

- Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
- Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
- Dot free even illumination achievable in SOHD & VHO with frosted lens
- Vibrant colors with R9 values up to 98
- Single micro binned LEDs +/- 30 CCT
- Dims with minimal color shift
- Class 2 listed for damp locations
- Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.01"L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI96 98 97
- Watt(Approx)1.9 W/Ft2.8 W/Ft4.8 W/Ft3.5 W/Ft6 W/Ft6.5 W/Ft7.5 W/Ft
- Lumens(Approx)234 Lm/Ft228 Lm/Ft381 Lm/Ft463 Lm/Ft316 Lm/Ft422 Lm/Ft677 Lm/Ft857 Lm/Ft
- OpticsDirectMediumGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)DMX
- Controls/NetworkEnlighted
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedDrywallWood
- HousingICFixture
- Housing Depth0.46 ''0.44 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKRS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
