KXL. Kendo XL Surface - Dynamic Color Linear Illumination System.
 Configure
 Add to project
Luminii.
Luminii.

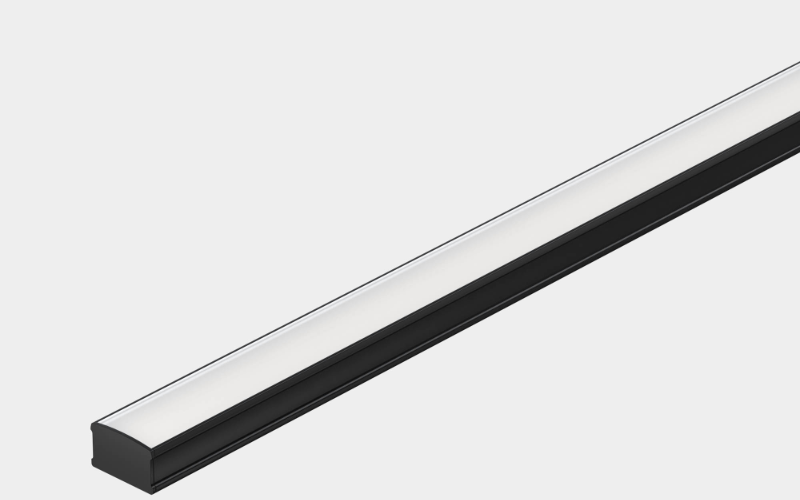

Luminii. KXL. Kendo XL Dynamic Color Linear Illumination System.
Luminii. KXL. Kendo XL Dynamic Color Linear Illumination System.
RESOURCES
DESCRIPTION
  • 24VDC Class 2 fixtures made to order up to 144”.Fixtures can be linked up to 30’ depending on output
  • Suitable for undercabinet, millwork, surface mount, direct view, cove, and accent light applications
  • Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5)
  • Class two listed for damp locations.
  • Dot free even illumination with frosted lens
  • Warm Dim follows the incandescent dimming curve and is compatible with MLV, ELV, and Incandescent dimmers.
  • Dynamic White allows individual control of CCT and output
  • RGB options offer balanced output across the color gamut and a true white with RGBW
  • Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors.
  • 5 year warranty
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.83”
    L: Run length (inch)
    H: 0.83”
  • Light Source
    LED
  • CCT/Color
    2700K Dim to Warm3500K Dim to WarmTunable WhiteRGBRGBW
  • CRI
    98
  • Watt(Approx)
    4 W/Ft4.5 W/Ft5.7 W/Ft7.3 W/Ft9.4 W/Ft7.6 W/Ft8.3 W/Ft10.1 W/Ft
  • Lumens(Approx)
    167 Lm/Ft165 Lm/Ft202 Lm/Ft133 Lm/Ft276 Lm/Ft243 Lm/Ft517 Lm/Ft535 Lm/Ft677 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDMX
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULMade in USAT24*RoHSDeclare
  • Environment
    Damp
  • Mounting Type
    SurfaceMagnetic System
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
