Luminii

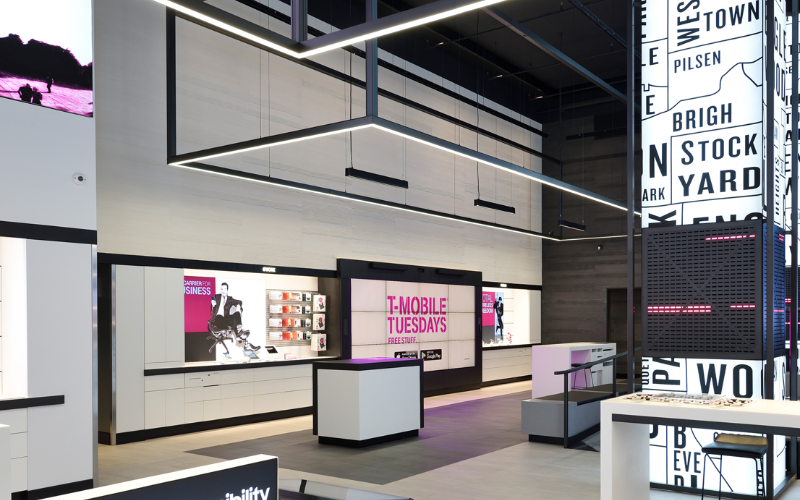

KiloS. Kilo Suspended POA Static White Power over aircraft cable linear lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 fixtures made to order up to 120 inches
- Dot free even illumination achievable in with frosted lens
- Vibrant colors with R9 values up to 98
- Single micro binned LEDs +/- 30 CCT
- Dims with minimal color shift
- Requires two junction boxes for split output connection
- Class 2 listed for damp locations
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.38"L: Run length (inch)H: 1.38"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI96 98 97 92
- Watt(Approx)3.8 W/Ft5.6 W/Ft7 W/Ft9.6 W/Ft12 W/Ft13 W/Ft15 W/Ft
- Lumens(Approx)408 Lm/Ft397 Lm/Ft663 Lm/Ft550 Lm/Ft735 Lm/Ft806 Lm/Ft1179 Lm/Ft1492 Lm/Ft
- OpticsDirectIndirectGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)DMX
- Controls/NetworkEnlighted
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKiloS-POA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
