Luminii

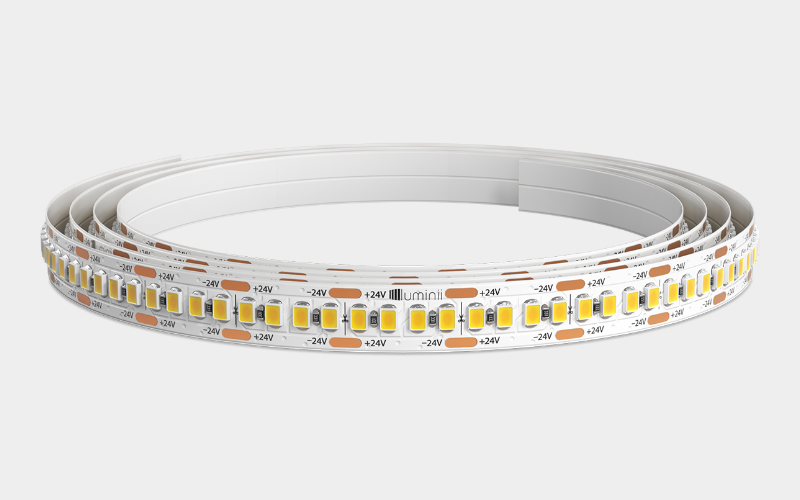

LL60X2-VHO. LineLED 60X2 Series Double Row Linear LED strip - 24 VDC.
Configure
Add to project
RESOURCES
DESCRIPTION
Line LED LL series double row is a small profile high performance LED strip. The durable, but flexible products feature a heavier copper board core for better heat dissipation and even illumination over long runs. Available in double row configurations ranging from 72 to 108 LEDs per foot with multiple power feed and connector options. Line LED LL series double row feature outstanding color consistency with single binning and CRI up to 98.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.63"L: Run length (inch)H: 0.09”
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI96 98 97
- Watt(Approx)9.4 W/Ft
- Lumens(Approx)834 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)DMX
- Controls/NetworkEnlighted
- Power/VoltageRemoteUNV 120-277V120V220-240V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLL60X2-VHO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
