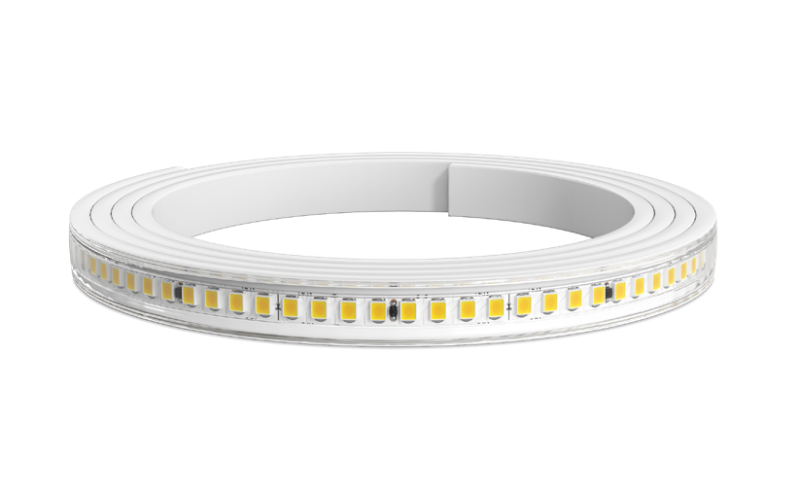

LLHE64WET-WHT-SO. LineLED LL Series Wet Tube IP65, IP67, & IP68 rated Linear LED strip - 24V.
Configure
Add to project
RESOURCES
DESCRIPTION
LineLED Wet Tube is a small profile, energy efficient LED strip for IP65, IP67, and IP68 rated wet installations. LineLED High Efficacy Wet Tube offers extremely high efficacy at over 140 lumens per foot and maximum run lengths up to 90ft. Utilizing a white silicone co-extrusion, HE64WET-WHT boasts boosted efficacy from normal wet tube LED strip. With a durable but flexible circuit board, LineLED Wet Tube is also easy to install. To maintain IP65, IP67, and IP68 rating, LineLED Wet Tube is factory sealed and bonded. Order in exact lengths required for install, LineLED Wet Tube is not field cuttable. IP rating of strip is equal to the lowest IP rating of section start and end options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.47”L: Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI94 93 95
- Watt(Approx)2.9 W/Ft
- Lumens(Approx)406 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHSDeclare
- EnvironmentIP65IP67IP68
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
