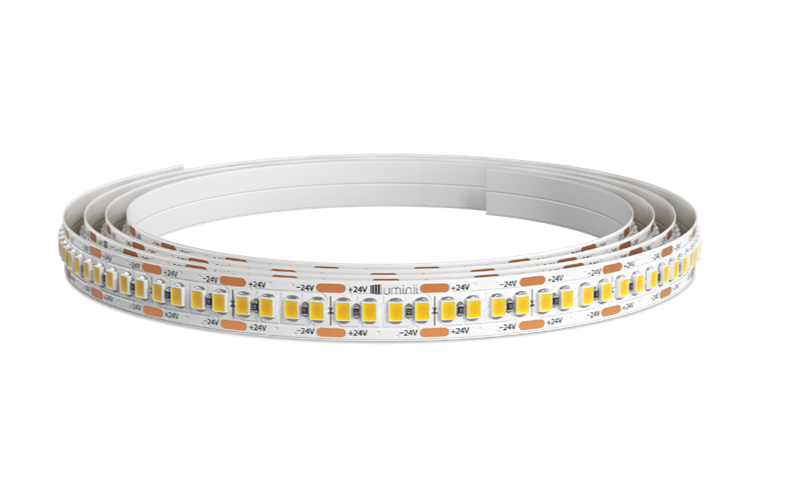

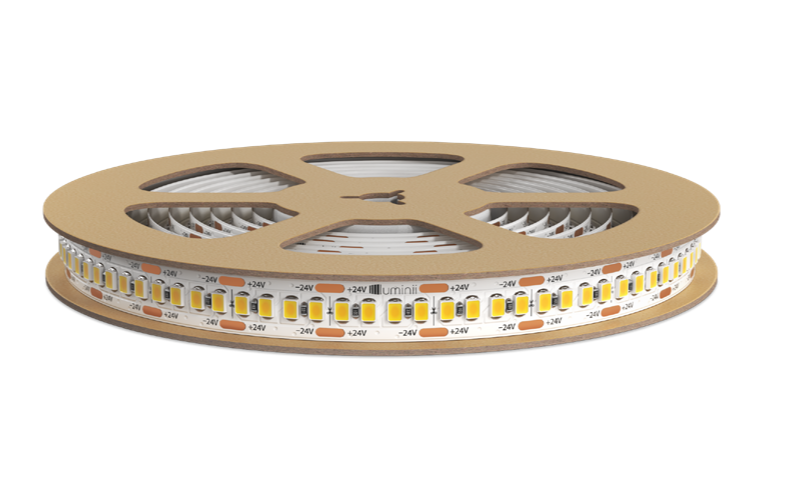

LLVC72-XHO. LineLED Vibrant Color Series Linear LED strip - 24 VDC.
Configure
Add to project



RESOURCES
DESCRIPTION
LineLED Vibrant Color series is a small profile, high performance LED strip. It offers best-in-class color quality with 95+ CRI and 95+ R9 values across the entire range of outputs, while sustaining efficacy above 115 lumens per watt. Vibrant Color VC72 offers super short cutting increments (0.66″) giving the ultimate flexibility for length options. With multiple outputs ranging from 130 lm/ft to over 1100 lm/ft, VC72 is designed to suit any lighting needs required. VC72 is also only 0.39″ (10mm) wide allowing it to fit in the smallest of extrusions. VC72 also offers a wide CCT offering from 1800K up to 4100K. With a super tight pitch, VC72 provides smooth, dot-free illumination in all Luminii extrusions when paired with a frosted lens.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.39”L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95 96 98 97
- Watt(Approx)1.1 W/Ft2.8 W/Ft3.7 W/Ft4.9 W/Ft5.9 W/Ft7.9 W/Ft9.9 W/Ft
- Lumens(Approx)129 Lm/Ft328 Lm/Ft436 Lm/Ft576 Lm/Ft697 Lm/Ft928 Lm/Ft1107 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
