Luminii

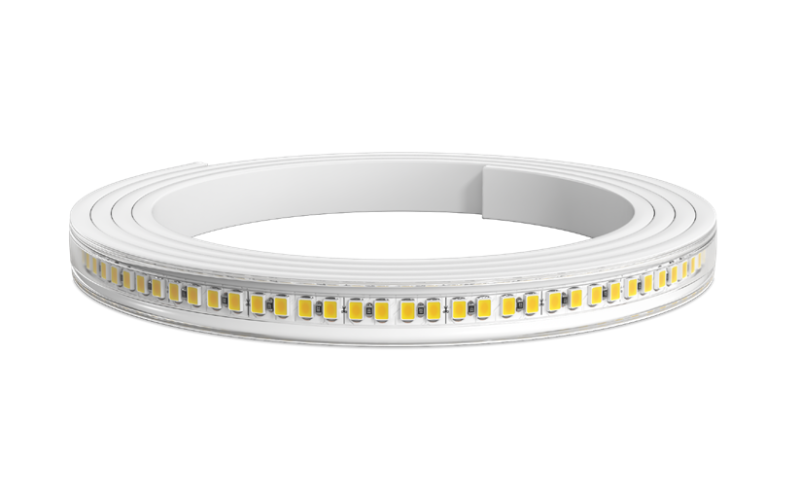

LLVC72WET-WHT-SO. LineLED Vibrant Color Series Wet Tube IP65, IP67, & IP68 rated Linear LED strip - 24V.
Configure
Add to project
RESOURCES
DESCRIPTION
LineLED Wet Tube is a small profile, energy efficient LED strip for IP65, IP67, and IP68 rated wet installations. LineLED Wet Tube offers excellent color quality with 95+ CRI and 95+ R9 values as well as multiple output options and a wide angle 120° beam. Utilizing a white silicone co-extrusion, VC72WET-WHT boasts boosted efficacy from normal wet tube LED strip. With a durable but flexible circuit board, LineLED Wet Tube is also easy to install. To maintain IP65, IP67, and IP68 rating, LineLED Wet Tube is factory sealed and bonded. Order in exact lengths required for install, LineLED Wet Tube is not field cuttable. IP rating of strip is equal to the lowest IP rating of section start and end options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.47”L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95 96 98 97
- Watt(Approx)3.7 W/Ft
- Lumens(Approx)401 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHSDeclare
- EnvironmentIP65IP67IP68
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLLVC72WET-WHT-SO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
