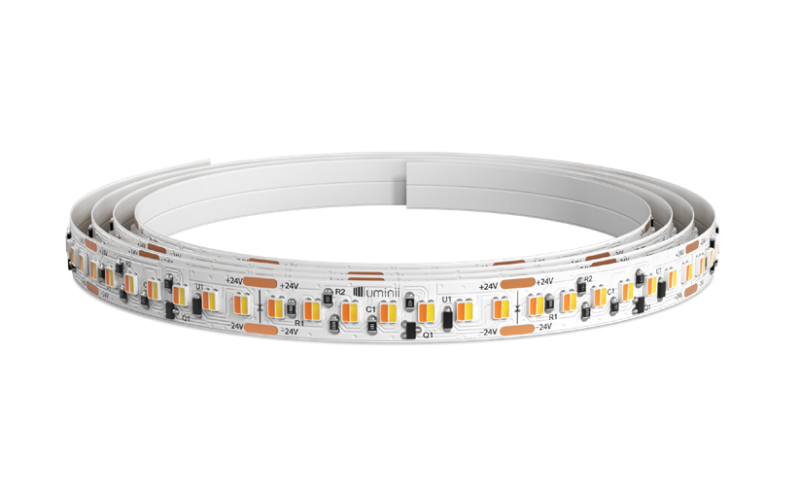

LLWD51-SO. LineLED Warm Dim Series Linear LED strip - 24 VDC.
Configure
Add to project
RESOURCES
DESCRIPTION
LineLED Warm Dim series is a small profile, high performance LED strip. LineLED WD51 follows the incandescent dimming curve from either 3000K, 2700K, or 2400K at full brightness down to 1800K at the lowest dim levels. Compatibility with 0-10V, DALI, DALI2, MLV (Triac), ELV, and DMX control makes the installation process much simpler for residential or hospitality applications. Pair WD51 with Luminii’s PS-UNI power supply for a true incandescent dimming curve at 0.1% and dim to off functionality. WD51 is also only 0.39″ (10mm) wide allowing it to fit in the smallest of extrusions. It is easily installed directly onto the mounting surface with double sided tape or within discrete aluminum extrusions to seamlessly blend into any space.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.39”L: Run lenght (inch)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm
- CRI96 95
- Watt(Approx)2.3 W/Ft4.7 W/Ft6.9 W/Ft
- Lumens(Approx)188 Lm/Ft395 Lm/Ft563 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLLWD51-SO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
