LUC. Luceo Suspended Static White Linear illumination system.
Configure
Add to project
RESOURCES
DESCRIPTION

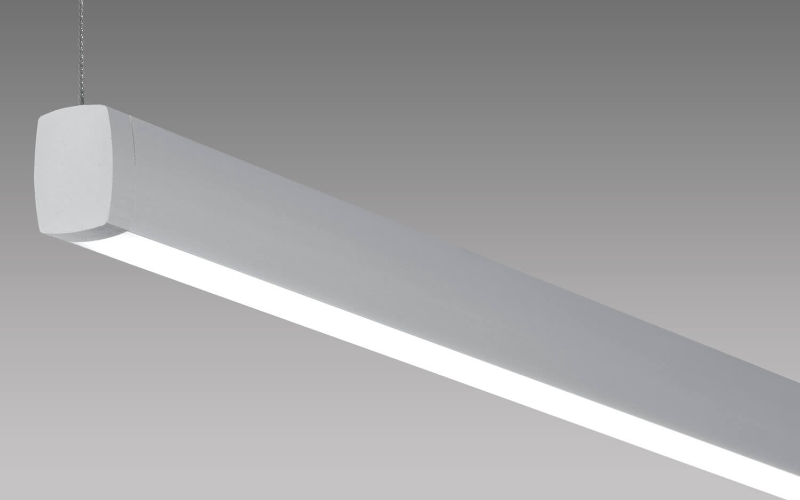

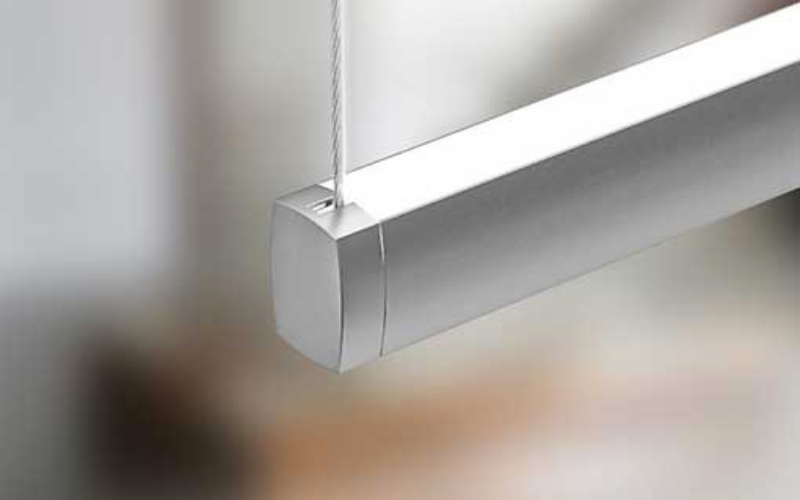

Extruded aluminum linear illumination system, Luceo is available in sections up to 96” in total length. Light output from the top & bottom of fixture can be customized for a wide range of applications with multiple color temperatures and finishes. Available with a remote power supply. Comes with 8ft silver adjustable cable and white finish canopy.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.75"L: Run length (inch)H: 1"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI96 98 97 93 92
- Watt(Approx)3.8 W/Ft5.6 W/Ft7 W/Ft9.6 W/Ft12 W/Ft13 W/Ft15 W/Ft
- Lumens(Approx)215 Lm/Ft209 Lm/Ft290 Lm/Ft349 Lm/Ft425 Lm/Ft387 Lm/Ft621 Lm/Ft786 Lm/Ft
- OpticsDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)DMX
- Controls/NetworkEnlighted
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
