Luminii

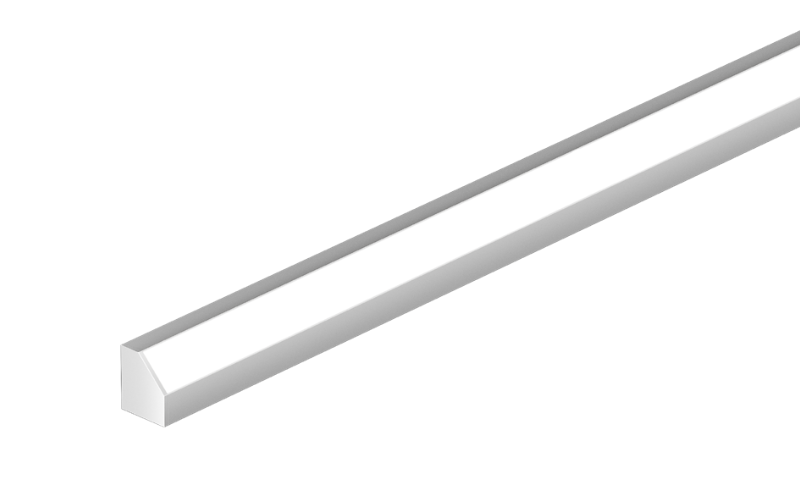

MK45W. Myka 45 Wet - Dynamic Color Linear Illumination System.
 Configure
 Add to project
DESCRIPTION
Myka 45 Wet is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for undercabinet, millwork, direct view, grazer, vanity, architectural reveals, accent lighting and surface mount applications, Dot free even illumination with frosted lens and high color outputs. Myka 45 Wet – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This wet-location fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.56"
    L: Run length (inch)
    H: 0.64"
  • Light Source
    LED
  • CCT/Color
    3000K3500K Dim to Warm
  • CRI
    98
  • Watt(Approx)
    2.3 W/Ft4.7 W/Ft4.4 W/Ft6.9 W/Ft5.4 W/Ft7.6 W/Ft
  • Lumens(Approx)
    111 Lm/Ft191 Lm/Ft234 Lm/Ft332 Lm/Ft322 Lm/Ft
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULMade in USAT24*RoHSBAA
  • Environment
    IP68
  • Mounting Type
    Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
