Luminii

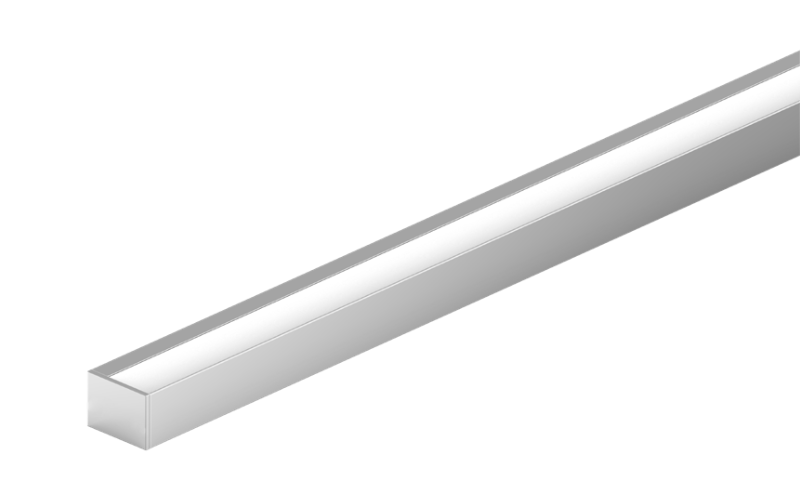

MKA. Myka Asymmetric - Static White Linear Illumination System.
 Configure
 Add to project
DESCRIPTION
Myka Surface Asymmetric is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for undercabinet, millwork, direct view, grazer, vanity, architectural reveals, accent lighting and surface mount. Myka Surface Asymmetric – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.82”
    L: Run length (inch)
    H: 0.61”
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3500K4000K
  • CRI
    95 96 98 97 94 93
  • Watt(Approx)
    1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft7.1 W/Ft
  • Lumens(Approx)
    103 Lm/Ft114 Lm/Ft262 Lm/Ft246 Lm/Ft349 Lm/Ft461 Lm/Ft353 Lm/Ft469 Lm/Ft557 Lm/Ft742 Lm/Ft666 Lm/Ft914 Lm/Ft
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULMade in USAT24*RoHSDeclare
  • Environment
    Damp
  • Mounting Type
    Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
