Luminii

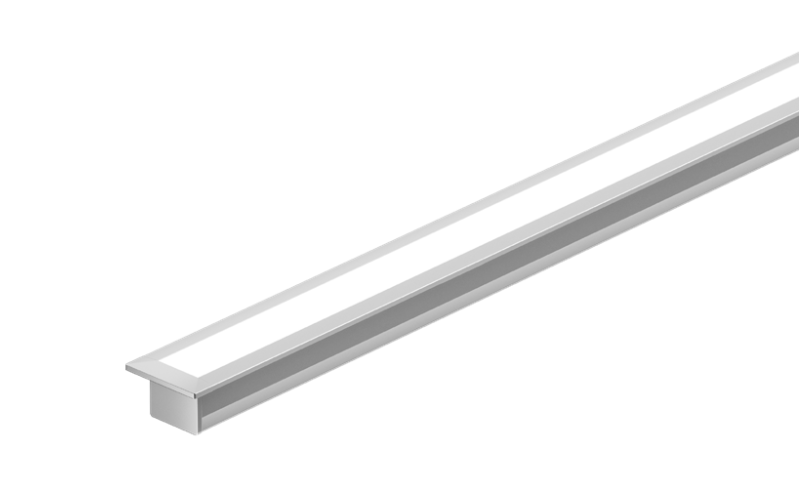

MKR-BABA. Myka Recessed Trimmed - Static White Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
Myka Recessed Trimmed is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for millwork, recessed, architectural reveals, and accent lighting applications, Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less. Myka Recessed Trimmed – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.78"L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95 96 98 97 94 93
- Watt(Approx)1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft7.1 W/Ft
- Lumens(Approx)103 Lm/Ft114 Lm/Ft262 Lm/Ft246 Lm/Ft349 Lm/Ft461 Lm/Ft353 Lm/Ft469 Lm/Ft557 Lm/Ft742 Lm/Ft666 Lm/Ft914 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedDrywall
- HousingFixture
- Housing Depth0.42 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
