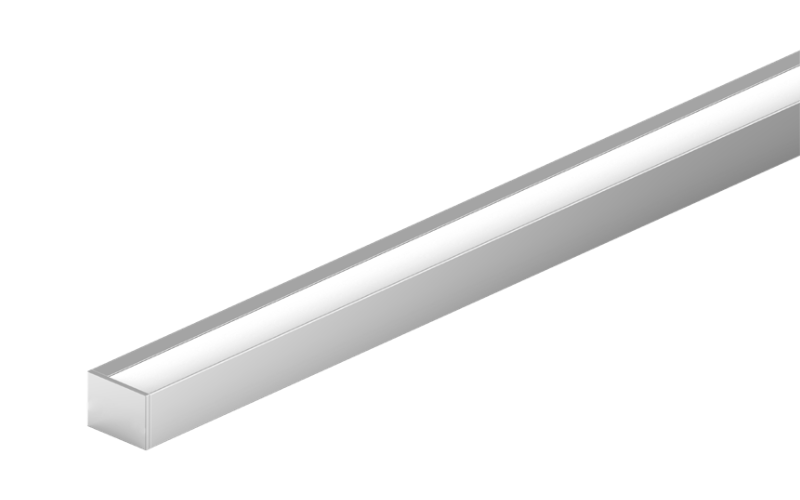

MKRA. Myka Asymmetric - Dynamic Color Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
Myka Surface Asymmetric is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for undercabinet, millwork, direct view, grazer, vanity, architectural reveals, accent lighting and surface mount. Myka Surface Asymmetric – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.82”L: Run length (inch)H: 0.61”
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to WarmTunable White
- CRI96 97
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft6.9 W/Ft5.4 W/Ft7.6 W/Ft
- Lumens(Approx)150 Lm/Ft316 Lm/Ft450 Lm/Ft335 Lm/Ft415 Lm/Ft562 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
