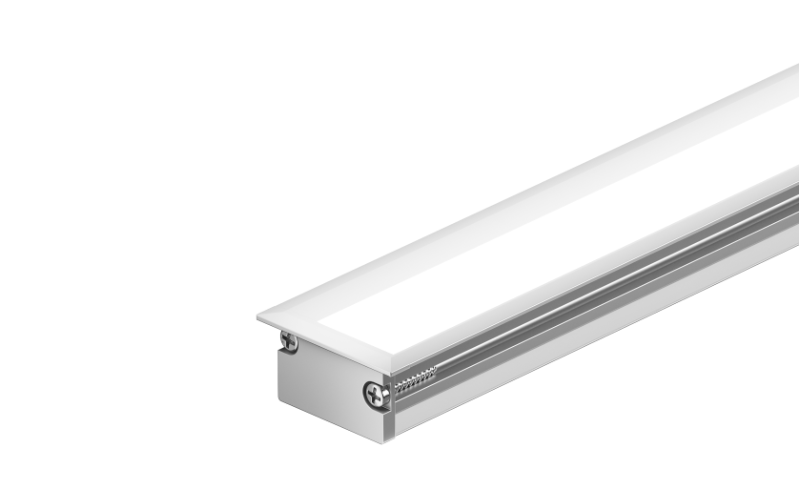

MKRAW. Myka Recessed Asymmetric Wet – Static White Recessed Linear 24V System.
Configure
Add to project
RESOURCES
DESCRIPTION
- 24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”.Fixtures can be linked up to 48’ depending on output
- Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5)
- Dot free even illumination with frosted lens and high color outputs
- Class 2 listed for damp locations
- High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
- High Efficacy options offer best in class output and efficacy with over 540 lm/ft and up to 97 lm/W
- Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
- 3 Year warranty
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI97 96 92
- Watt(Approx)1.9 W/Ft2.8 W/Ft4.8 W/Ft3.5 W/Ft6 W/Ft6.5 W/Ft
- Lumens(Approx)137 Lm/Ft133 Lm/Ft184 Lm/Ft222 Lm/Ft270 Lm/Ft246 Lm/Ft395 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume Premier 3-wire (L3D03W)Lutron Hi-lume 3-wire (L3DA3W)DMX
- Controls/NetworkEnlighted
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSDeclare
- EnvironmentIP68
- Mounting TypeCeiling RecessedDrywall
- HousingFixture
- Housing Depth0.5 ''
