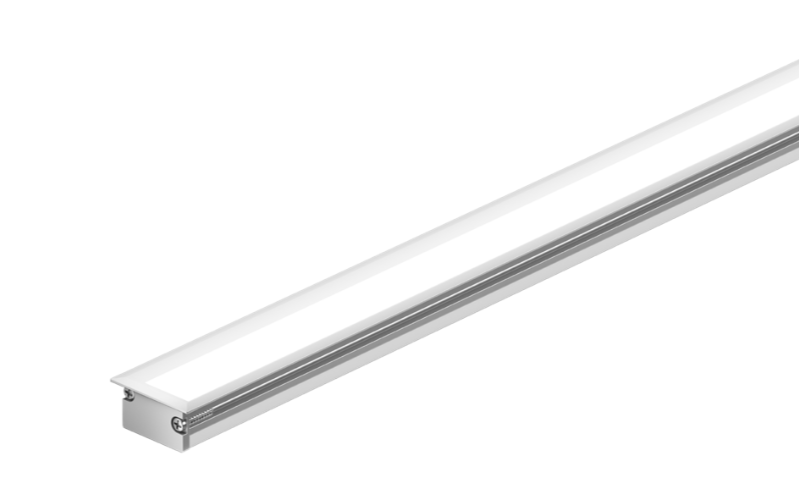

MKRAW. Myka Recessed Asymmetric Wet - Dynamic Color Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
Myka Recessed Asymmetric Wet is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for undercabinet, millwork, direct view, grazer, vanity, architectural reveals, accent lighting and surface mount. Myka Recessed Asymmetric Wet – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This wet-location fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1"L: Run length (inch)
- Light SourceLED
- CCT/Color3000K Dim to Warm3500K Dim to WarmTunable White
- CRI98
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft6.9 W/Ft5.4 W/Ft7.6 W/Ft
- Lumens(Approx)108 Lm/Ft187 Lm/Ft228 Lm/Ft325 Lm/Ft315 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedWall RecessedDrywallWood
- HousingFixture
- Housing Depth0.49 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMKRAW-R-DC
—
