Luminii

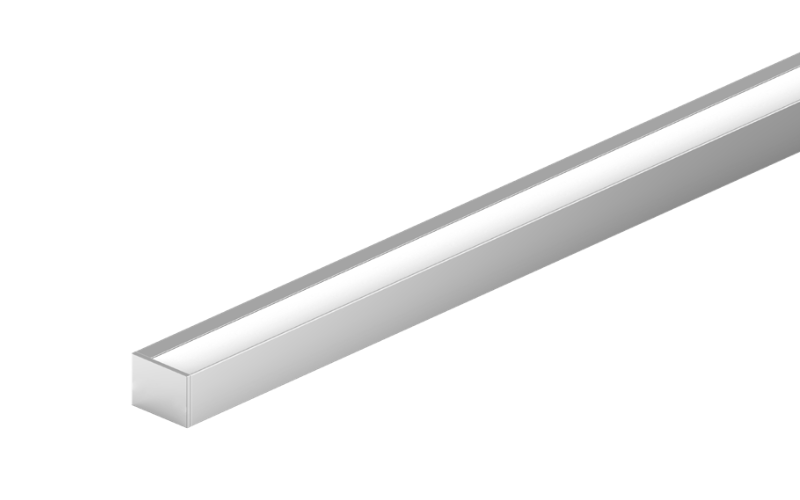

MKRAW. Myka Asymmetric Wet - Static White Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
Myka Surface Asymmetric Wet is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for undercabinet, millwork, direct view, grazer, vanity, architectural reveals, accent lighting and surface mount. Myka Surface Asymmetric Wet – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This wet-location fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI96 97
- Watt(Approx)1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft7.1 W/Ft
- Lumens(Approx)74 Lm/Ft82 Lm/Ft189 Lm/Ft177 Lm/Ft252 Lm/Ft254 Lm/Ft332 Lm/Ft402 Lm/Ft338 Lm/Ft481 Lm/Ft535 Lm/Ft659 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHSDeclareBAA
- EnvironmentIP68
- Mounting TypeCeiling RecessedMillwork RecessedWall RecessedDrywallWood
- HousingFixture
- Housing Depth0.49 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMKRAW-SW
—
