Luminii

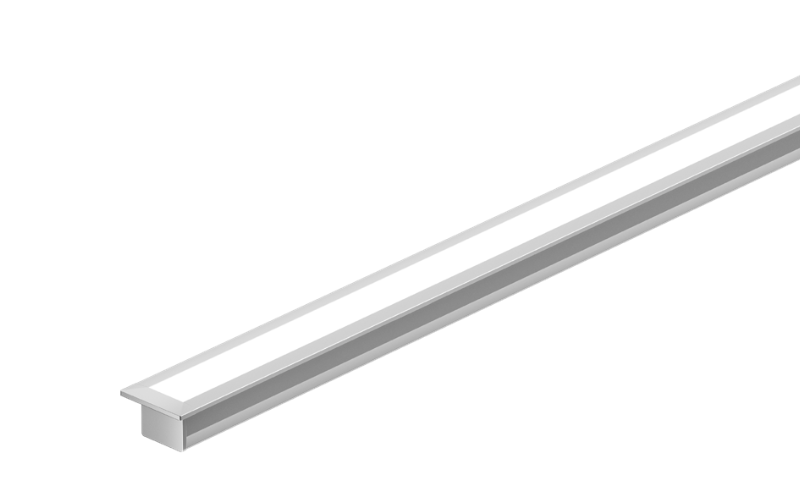

MKRW. Myka Trimmed Recessed Wet Dynamic Color Linear Illumination System.
 Configure
 Add to project
DESCRIPTION
Myka Recessed Trimmed Wet is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for millwork, recessed, architectural reveals, and accent lighting applications, Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors. Myka Recessed Trimmed Wet – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA. This wet-location fixture is BAA and BABA compliant.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.78"
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    3000K Dim to Warm3500K Dim to WarmTunable White
  • CRI
    98
  • Watt(Approx)
    2.3 W/Ft4.7 W/Ft4.4 W/Ft6.9 W/Ft5.4 W/Ft7.6 W/Ft
  • Lumens(Approx)
    111 Lm/Ft191 Lm/Ft234 Lm/Ft332 Lm/Ft322 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULT24*RoHSDeclareBAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedDrywall
  • Housing
    Fixture
  • Housing Depth
    0.48 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
