Luminii

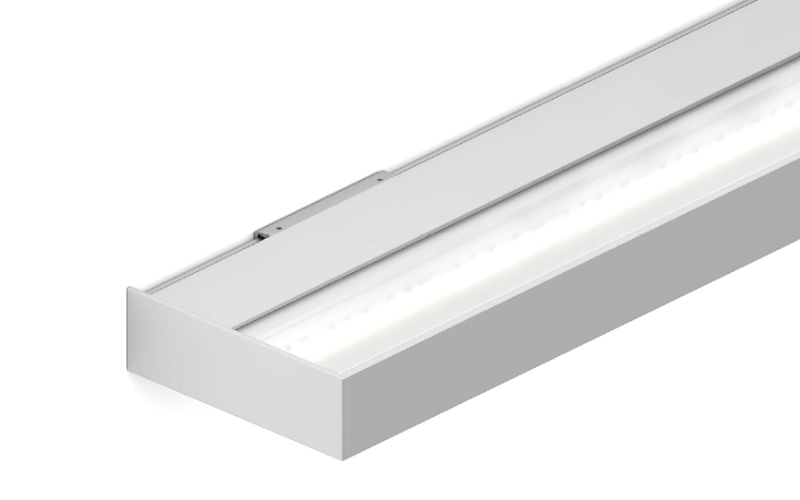

MREC. mCove Rectangle Remote Dynamic Color Linear Illumination System.
 Configure
 Add to project
DESCRIPTION
mCove Rectangle is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include Self-contained integral power supply eliminates remote driver requirements for a seamless system., Fixtures made to order up to 144” and can be linked together for a continuous run, Suitable for wall mount. mCove Rectangle – Dynamic Color is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Additional highlights include Fixtures made to order up to 144” and can be linked together for a continuous run, Suitable for direct view, vanity, and accent lighting applications, Class two listed for damp locations. Proudly assembled in the USA.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4"
    L: Run length (inch)
    H: 1.25"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K Dim to Warm3000K Dim to WarmTunable WhiteRGBRGBW
  • CRI
    96 95 97
  • Watt(Approx)
    2.3 W/Ft4.7 W/Ft4.4 W/Ft4 W/Ft4.5 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft9.5 W/Ft8.3 W/Ft
  • Lumens(Approx)
    170 Lm/Ft192 Lm/Ft190 Lm/Ft153 Lm/Ft280 Lm/Ft232 Lm/Ft358 Lm/Ft379 Lm/Ft470 Lm/Ft318 Lm/Ft509 Lm/Ft636 Lm/Ft835 Lm/Ft
  • Optics
    IndirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULMade in USAT24*RoHSDeclare
  • Environment
    Damp
  • Mounting Type
    Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
