Luminii

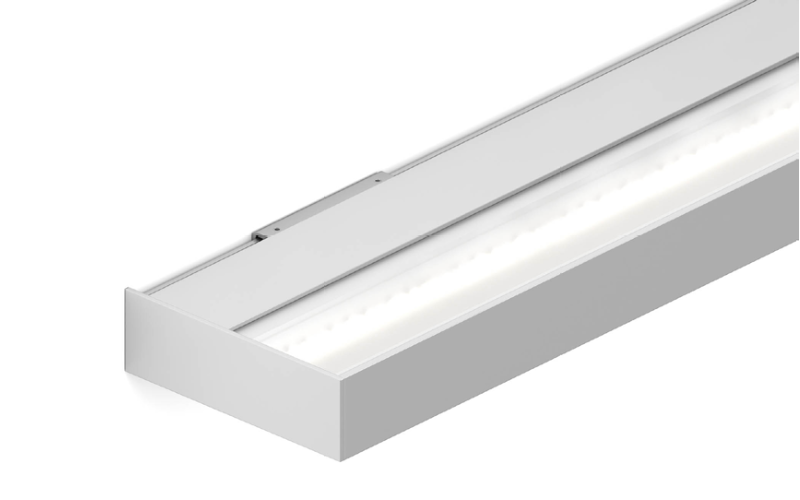

MREC. mCove Rectangle Remote Static White Linear Illumination System.
Configure
Add to project


RESOURCES
DESCRIPTION
mCove Rectangle is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include Self-contained integral power supply eliminates remote driver requirements for a seamless system., Fixtures made to order up to 144” and can be linked together for a continuous run, Suitable for wall mount. mCove Rectangle – Dynamic Color is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Additional highlights include Fixtures made to order up to 144” and can be linked together for a continuous run, Suitable for direct view, vanity, and accent lighting applications, Class two listed for damp locations. Proudly assembled in the USA.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: Run length (inch)H: 1.25”
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95 96 98 97 94 93
- Watt(Approx)1.1 W/Ft1 W/Ft1.9 W/Ft2.8 W/Ft2.9 W/Ft3.7 W/Ft4.9 W/Ft3.8 W/Ft5.9 W/Ft5.6 W/Ft7.9 W/Ft9.9 W/Ft7.1 W/Ft8.9 W/Ft
- Lumens(Approx)116 Lm/Ft129 Lm/Ft297 Lm/Ft278 Lm/Ft395 Lm/Ft399 Lm/Ft522 Lm/Ft631 Lm/Ft531 Lm/Ft840 Lm/Ft754 Lm/Ft1002 Lm/Ft1034 Lm/Ft1245 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMREC-R-SW
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
