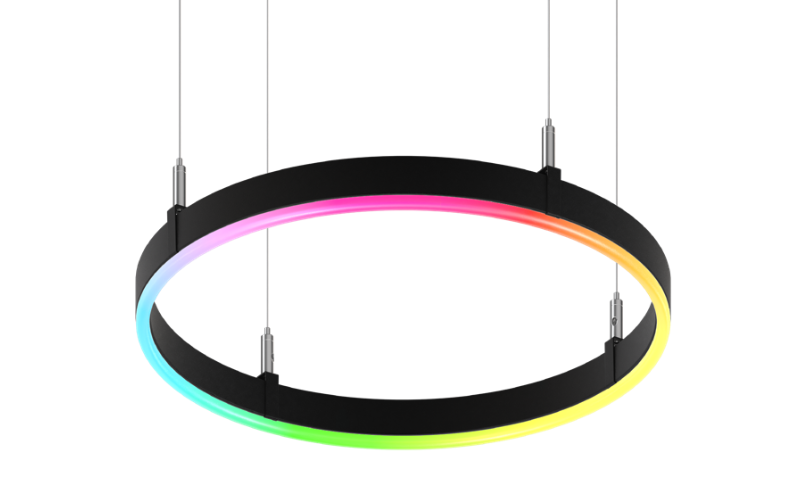

PX. Plexineon Rings Suspended Mount RGB, RGBW and RGBW Pixel.
Configure
Add to project
RESOURCES
DESCRIPTION
iLight Plexineon Rings Suspended is an architectural-grade rigid ring mount luminaire offering a distinctive alternative to neon lighting. These customizable, made-to-order fixtures adapt to complex applications and are available in a horizontal ring orientation with a variety of finishes. Designed for suspended installations, they create bold, floating rings of smooth, dot-free illumination.
Available in Dynamic Color or Static Color, the system operates on 24VDC and is IK10 and 3G rated for durability. Dynamic Color features RGB technology with balanced output across the color gamut and true white via RGBW, while Smart Pixel enables cascading and chasing effects. Static Color provides uniform illumination in white (2700K–4000K) and monochrome colors including red, blue, green, teal, yellow, and magenta. The luminaire includes a 5-year indoor warranty.
Available in Dynamic Color or Static Color, the system operates on 24VDC and is IK10 and 3G rated for durability. Dynamic Color features RGB technology with balanced output across the color gamut and true white via RGBW, while Smart Pixel enables cascading and chasing effects. Static Color provides uniform illumination in white (2700K–4000K) and monochrome colors including red, blue, green, teal, yellow, and magenta. The luminaire includes a 5-year indoor warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 Ft6 Ft6 Ft-12 FtL: 3 Ft6 Ft12 FtRun length (Ft)H: 1.5"
- Light SourceLED
- CCT/ColorRGBRGBW
- CRI85
- Watt(Approx)38.6 W46.2 W53.7 W77.2 W92.3 W107.4 W154.6 W184.7 W214.9 W309.1 W369.5 W429.8 W
- Lumens(Approx)679 Lm792 Lm1357 Lm1583 Lm2714 Lm3166 Lm5429 Lm6333 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-Lume 3-wire (L3D)Lutron EcoSystemDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USARoHS
- EnvironmentIP67
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePX-R-SUS-RGBW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
