Luminii

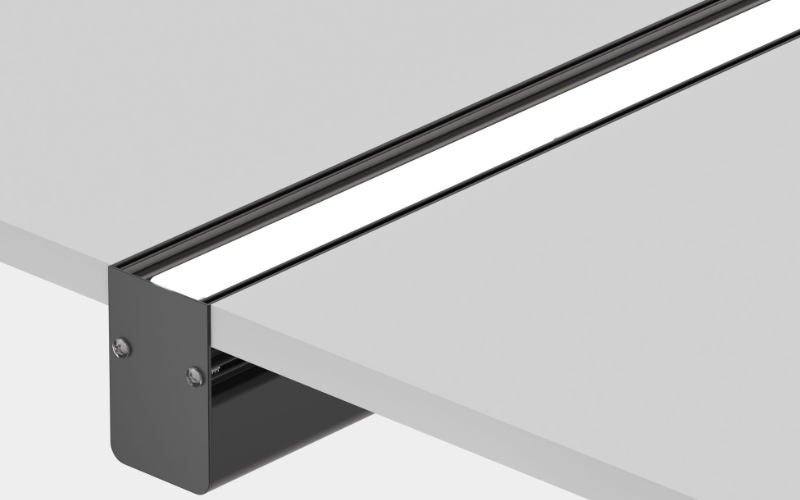

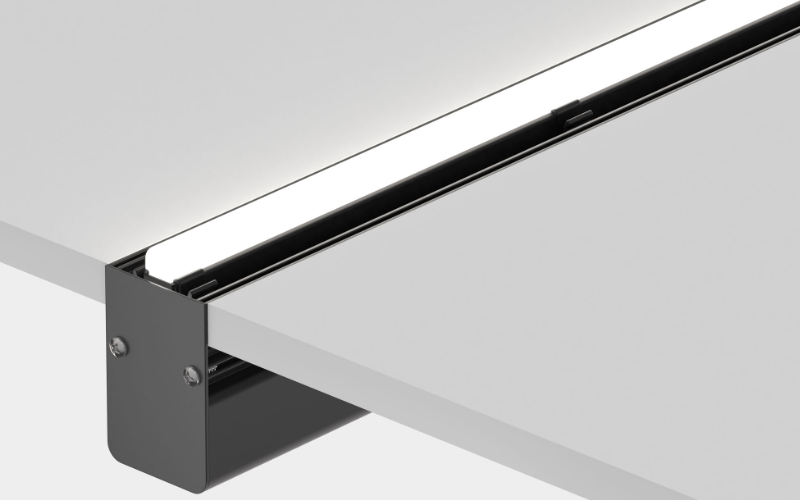

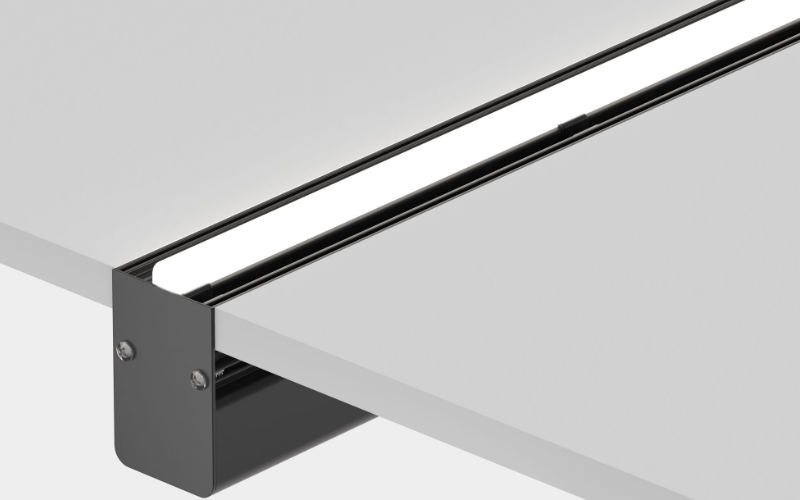

PX. Plexineon Recessed Static Color Static White / Monochrome Color.
Configure
Add to project
RESOURCES
DESCRIPTION
- For interior and exterior accent lighting.
- Neon look providing a crisp, clear line of light visible for miles
- Mounting Clips are included in the appropriate quantities
- Operating Temperature: -40° F to 140° F (-40° C to 60° C)
- 24VDC Class 2
- IK10 and 3G rated
- Wet Rated
- 5 year warranty indoor, 3 year warranty outdoor
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.4"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000KYellow/AmberRedGreenBlue
- CRI90
- Watt(Approx)1.2 W/Ft1.4 W/Ft1.5 W/Ft2.6 W/Ft2.9 W/Ft2.7 W/Ft3.2 W/Ft
- Lumens(Approx)14 Lm/Ft11 Lm/Ft50 Lm/Ft24 Lm/Ft60 Lm/Ft62 Lm/Ft123 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Ecosystem DigitalEldoLED 0-10V/DALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USARoHS
- EnvironmentWet
- Mounting TypeCeiling Recessed
- HousingNew Construction
- Housing Depth2.2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePX-RM-SC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
