Luminii

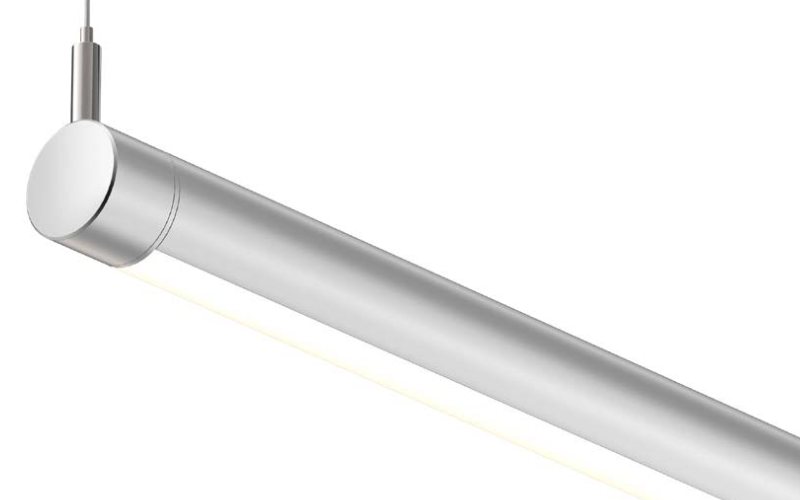

RUN. Runda Suspended - Dynamic Color Linear Illumination System.
 Configure
 Add to project
DESCRIPTION
Runda Suspended is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with RGB LEDs for vivid, saturated color, RGBW LEDs delivering rich whites alongside color, smart Pixel LEDs enabling dynamic, addressable color effects, Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 232”., Class two listed for damp locations., Dot free even illumination with frosted lens. Runda Suspended – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Additional highlights include 24VDC Class 2 fixtures made to order up to 232”. Proudly assembled in the USA.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.5"
    L: Run length (inch)
    H: 1.5"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K Dim to WarmTunable WhiteRGBRGBW
  • CRI
    96 97 95
  • Watt(Approx)
    2.3 W/Ft4.7 W/Ft4.4 W/Ft4 W/Ft4.5 W/Ft6.9 W/Ft5.4 W/Ft5.7 W/Ft7.6 W/Ft9.5 W/Ft8.3 W/Ft
  • Lumens(Approx)
    143 Lm/Ft161 Lm/Ft160 Lm/Ft128 Lm/Ft195 Lm/Ft300 Lm/Ft267 Lm/Ft235 Lm/Ft428 Lm/Ft318 Lm/Ft394 Lm/Ft534 Lm/Ft701 Lm/Ft
  • Optics
    DirectIndirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDMX
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    UL/CULMade in USAT24*RoHS
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
