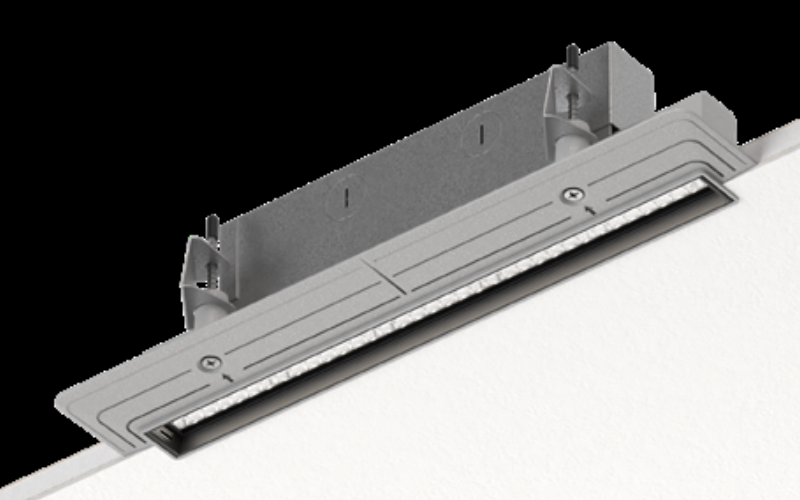

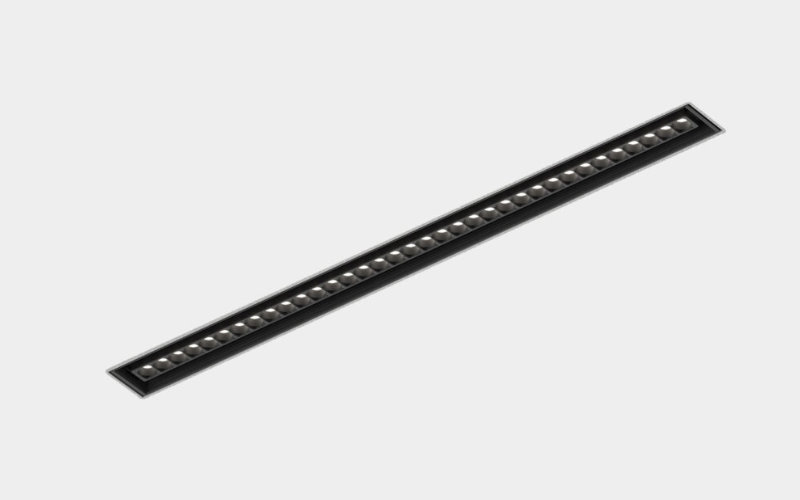

SLD. Stenos Trimless 12” Linear Downlight Micro Optic Family.
Configure
Add to project
RESOURCES
DESCRIPTION
Seamlessly illuminate interior environments with the STENOS 12” Trimless Linear Downlight. Experience flawless beam quality from a small yet punchy profile. The architecturally designed form factor produces an output of 1323 lumens resulting in 8541 CBCP.
Featuring a +/- 30° aimable tilt and beam shaping accessories providing a wide range of flexibility for any project, the STENOS 12” Trimless Linear Downlight includes a constant voltage design that enables multiple fixtures to operate from a single power supply, resulting in a simplified installation and overall cost savings. Further customize beam shape with optional beam shaping and widening STENOS Easy Snap lenses and louvers, available in multiple highly flexible size options.
Featuring a +/- 30° aimable tilt and beam shaping accessories providing a wide range of flexibility for any project, the STENOS 12” Trimless Linear Downlight includes a constant voltage design that enables multiple fixtures to operate from a single power supply, resulting in a simplified installation and overall cost savings. Further customize beam shape with optional beam shaping and widening STENOS Easy Snap lenses and louvers, available in multiple highly flexible size options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.05"L: 12.36"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93
- Watt(Approx)13.5 W
- Lumens(Approx)1323 Lm
- OpticsDirectGrazingNarrowFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemLutron Hi-lume Eco (L3DAE)eldoLED SOLO DALIeldoLED LINEARDMX
- Controls/NetworkEnlighted
- Power/VoltageRemoteUNV 120-277V120V220-240V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHS
- EnvironmentWet
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingIC
- Housing Depth2.35 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSLD-12
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
