SMD. STENOS 3, 5, 12 inch Directional Module Micro Optic Module.
Configure
Add to project
RESOURCES
DESCRIPTION

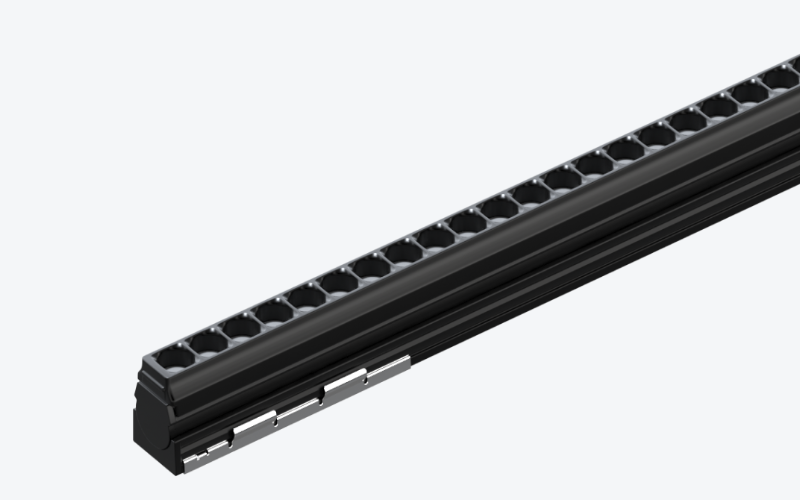

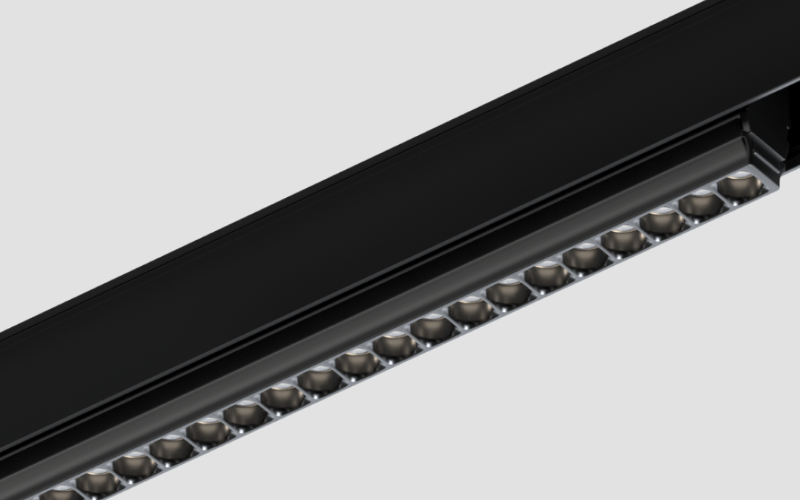

STENOS Directional Modules support the suspended, surface mount, recessed, and deep recessed track systems. Featuring advanced micro-optics, STENOS directional modules provide flawless beam quality in a flexible and aimable (+/- 30–degree tilt) form factor. These snap-in modules allow for simple setup and reconfiguration all along the track system even after installation. Directional modules are available in lengths of 3-, 5-, and 12-inches and work in concert with STENOS optical accessories for even greater control.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 2.5"4.8"11.8"H: 0.99"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93 94 95
- Watt(Approx)2.6 W5.4 W13 W
- Lumens(Approx)274 Lm546 Lm1323 Lm
- OpticsDirectGrazingNarrowFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-Lume 3-wire (L3D)Lutron Hi-lume Eco (L3DAE)EldoLED 0-10V/DALIDMX
- Controls/NetworkEnlighted
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*RoHS
- EnvironmentDamp
- Mounting TypePendantTrack/BuswaySystemCeiling SurfaceCeiling RecessedTrimless Drywall
- HousingNew Construction
- Housing Depth0.99 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSMD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
