Lumark (Cooper Lighting Solutions)

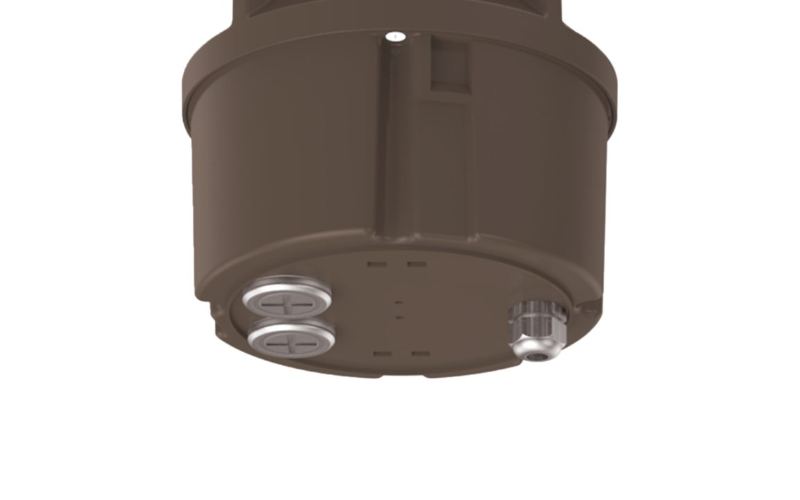

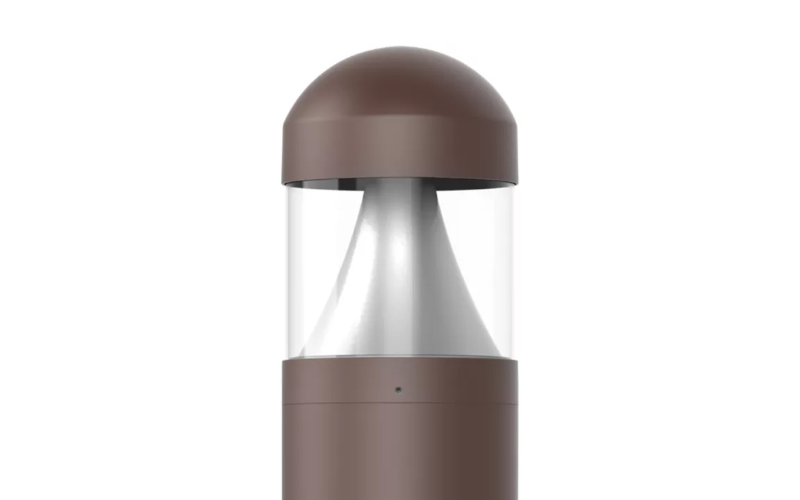

BOL. Bollard Pathway Luminaire.
Configure
Add to project




RESOURCES
DESCRIPTION
The Lumark AP BOL Bollard delivers flexible, energy-efficient pedestrian lighting with a single base fixture and four head options, allowing for multiple aesthetics without added complexity. With selectable wattage, CCT, beam angle, and photocontrol settings, it adapts easily to varied outdoor environments. DIP switches simplify field configuration, while included mounting hardware streamlines installation. Designed with future battery pack capability and IP65 durability, the BOL Bollard supports long-term performance in commercial, campus, and walkway applications. It’s the ideal blend of design, flexibility, and contractor-friendly installation in one easy-to-stock solution.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.30"L: 6.30"H: 39.9"41.55"43.66"42.24"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)15 W20 W25 Wswitchable
- Lumens(Approx)2412 Lm3817 Lm3377 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/NetworkIntegral Sensor
- Power/Voltage
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentIP65
- Mounting TypeBollard
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
