Lumark (Cooper Lighting Solutions)

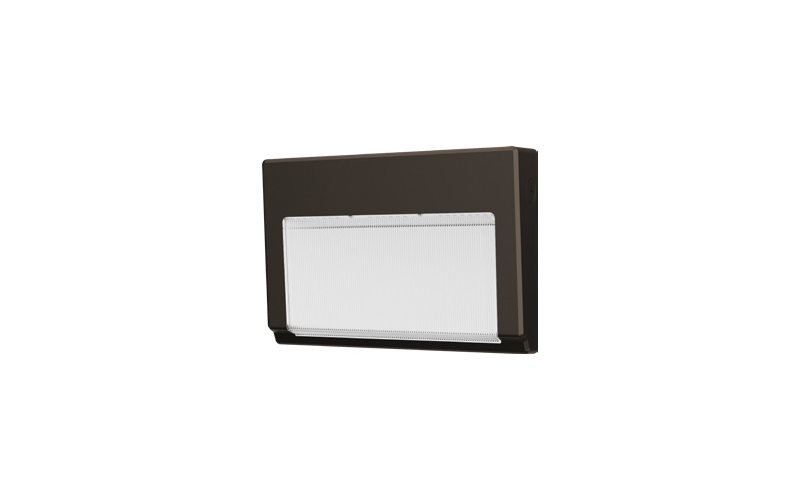

CWP. COMPACT WALL PACK Wall Mount Luminaire.
Configure
Add to project




RESOURCES
DESCRIPTION
The Lumark CWP Compact Wall Pack is a configurable luminaire delivering high-performance, energy-efficient illumination in a sleek, ultra-thin 2.7" profile. With 24 configurations in each SKU, the product offers 4 selectable wattages producing 1,650 to 16,600 lumens and 3 selectable CCTs from 3000K to 5000K, allowing easy customization for a wide range of applications. A selectable dusk-to-dawn photocontrol with on/off control provides added convenience and efficiency, while the easy snap-mount installation simplifies setup. Designed for 120-347V operation with 80 CRI, this fixture is ideal for projects that demand flexibility, fast installation, and reliable performance.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.67"2.69"2.739"L: 8.9"11.97"15.983"H: 8.58"9.168"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)12-30 W30-75 W50-125 Wswitchable
- Lumens(Approx)1640-4100 Lm4200-10500 Lm7000-17500 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULDLC*RoHS
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
