Lumark (Cooper Lighting Solutions)

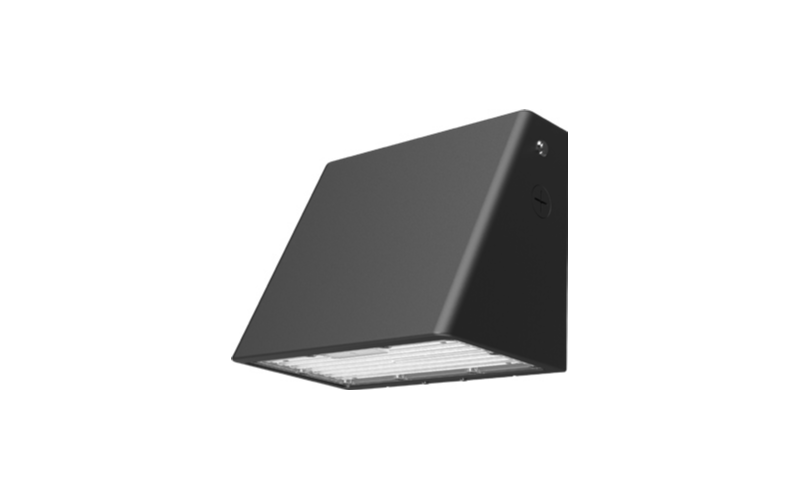

TWC. TAPERED WALL CUTOFF Wall Mount Luminaire.
Configure
Add to project




RESOURCES
DESCRIPTION
The Lumark TWC Tapered Wall Cutoff delivers modern architectural styling with high-performance, energy-efficient illumination and exceptional flexibility in one streamlined solution. Featuring selectable wattages, three selectable CCT options, and selectable distributions, TWC provides up to 72 configurations per SKU to simplify specification and inventory management. Available in multiple housing lengths and finish options, TWC adapts easily across applications while maintaining a refined daytime appearance. Selectable dusk-to-dawn photocontrol, optional emergency battery configurations, and rugged IP65-rated construction provide dependable, long-term performance for commercial and outdoor environments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"7.96"L: 12"16.96"H: 5.95"5.92"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)24-60 W40-100 W60-150 Wswitchable
- Lumens(Approx)3840-9600 Lm6400-16000 Lm9600-24000 Lmswitchable
- OpticsDirectType IIType IIIType IV
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance90000 h
- CertificatesUL/CULRoHS
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
